| 原産地: | 中国(本土) | LEDの光源: | クリー語かBridgelux | 銘柄: | GD | モデル番号: | LBS | CRI (Ra>): | 75 | 入力電圧(V): | 85/265 | ランプの明るい効率(lm/w): | 85 | 認証: | CE, FCC, RoHS, LVD, EMC | ランプの光束(lm): | 850 | ランプボディ材料: | アルミ合金 | ランプ力(W): | 10 | ビーム角(°): | 120 | 働く寿命(時間): | 50000 | 色温度(CCT): | 暖かく、純粋で、涼しい白 | IPの評価: | IP65 | 光源: | LED | 項目タイプ: | 芝生はつく | 評価される力: | 10W | 軽いタイプ: | LED | 保護レベル: | IP65 | 電圧: | 85V/265V |
包装
| 包装: | カートン |

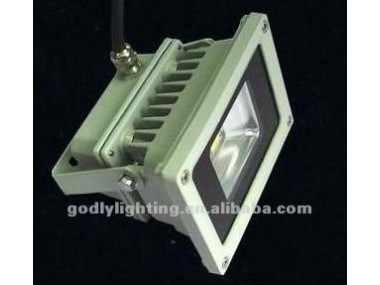

10/20/30W LED spot light
*use single COB packaging led (10W-30W),or cree chip, multi led colors for choice.
*High purity aluminium reflector, case and radiator , toughened glass cover,effective constant current.
Series | GODLY LIGHTING LED Flood light | ||||
Model | GD-LBS-10W | GD-LBS-20W | GD-LBS-30W | GD-LBS | |
Power Consumption | LEDs | ||||
Power Supply |
|
| |||
Total | 10W | 20W | 30W |
| |
replac HID Lamp | 40W | 80W | 120W |
| |
Whole Lamp Efficiency | 100+-5LM/W | ||||
Dimension | 115x85x90mm/180140x100mm/225x185x130mm | ||||
Net Weight | 0.82/1.45/2.45/KG | ||||
Color Temperature | 2700K (warm white) / 5500K (pure white)/7500(cw) | ||||
Color Rendering | ≥Ra80 | ||||
Working Life | ≥50000Hrs | ||||
Luminous Decay | < 10% in 10000Hrs | ||||
< 20% in 50000Hrs | |||||
Housing Material | Aluminum Alloy | ||||
IP Class | IP 65 (Upgradeable to IP 67) | ||||
Insulation Class | Class I (Upgradeable to Class II) | ||||
Working Temperature | -40C /+45 | ||||
Working Humidity | 10% - 95% | ||||
AC Input | 85 – 265Vac | ||||
DC Input | 34Vdc/0.9A | ||||
Power Factor | ≥0.95 | ||||
WARRANTY |
| ||||
| Whole light | 3 years | ||||
