| 原産地: | 中国(本土) | 銘柄: | gk | モデル番号: | Gk- opec- ll- 100b | タイトル: | 流量計のメーカー | 製品: | 超音波流量計中国 | アプリケーション: | 液体 | dn: | 15-6000mm | プロセス圧力: | 40バー( 580psi) | 流体温度: | -40- 110℃ | 流量: | 4700dm³/min( ギャル1250/min) | センサー: | 小さな/高温任意のための | 電源: | Ac100-240v | 測定: | 200*90*30mm |
包装
| 包装: | カートンでや、 お客様の要件 |

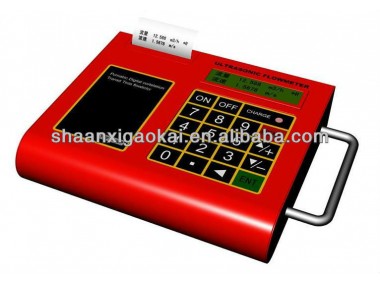

High quality portable oxygen flow meter/portable water flow meter/portable gas flow meter
1.Product Overview
OPEC-LL-100B series ultrasonic flowmeter with low voltage, multi pulse time difference principle, the high precision and ultra stable double balanced signal differential emission, poor acoustic transmission time to measure the upstream and downstream direction receiving digital detection technology, calculate the velocity according to the time difference. Has the advantages of good stability, small zero drift, high measuring precision, the characteristics of wide measurement range and strong anti-interference.
| linearity | 0.50% |
| repeatability | 0.20% |
| Accurancy | ±1%,flow>0.2m/s |
| Response Time | 0-999/Second(optional) |
| Flow rate | ±32m/s |
| DN | 15-6000mm |
| Measuring Unit | Meters, feet, cubic meters, litres, cubic feet, the United States gallon, British gallons, drums, |
| flow accumulator | seven |
| Liquid | All single liquid compatible with ultrosonic |
| Saftey | Code protect |
| Display | 4×8 Chines/4×16 English |
| Interface | RS-232 |
| Sensor | M1 standard |
| sensor cable | standard 5m×2/10m×2(optional) |
| Power | three AAA built in Ni-H battery,AC100-240V adaptor |
| Data recorder | recorder built in(2000 lines datasheet can be recorded |
| Housing material | ABS |
| Measurement | 200×90×30mm |
| Weight | 500g(1.2Ibs)(battery included) |
