| 原産地: | 中国(本土) | 銘柄: | kangput | モデル番号: | PDS8202T |
包装
| 包装: | 個別カートン。 |

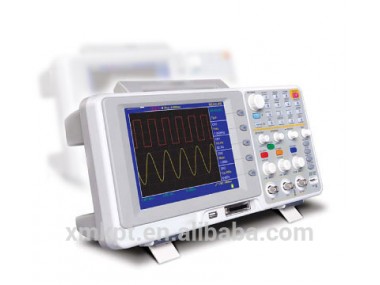

Multifunction PDS8202T 8 Inch high quality digital 200Mhz Oscilloscope 4 channel oscilloscope
Best product
Best quality
Best price
Best Service
Do our best for you
Specification
Model | PDS8202T |
Bandwidth | 200MHz |
Sample rate(Real time) | 2GS/s (1GS/s for dual channels) |
Horizontal Scale(S/div) | 1ns/div--100s/div step by 1-2-5 |
Rise time (at input, typical) | ≤3.5ns |
Channels | Dual channels+external trigger |
Display | 8" color LCD, TFT display , 640*480 pixels, 65535 colors |
Input impedance | 1MΩ±2%,in parallel with 20pF±3pF |
Isolation between channels | 50Hz (100:1), 10MHz (40:1) |
Max. input voltage | 400V(DC + AC PK-PK) |
DC gain accuracy | ±3% |
DC accuracy(Average) | Average≥16:±(3% reading+0.05div) for V |
Probe attenuation factor | 1X,10X,100X,1000X |
LF respond(AC, -3dB) | ≥5Hz(at input) |
Record length | Max.2M points |
Sampling rate/relay time accuracy | ±100ppm |
Interpolation | (sin x)/x |
| ||
Interval(T)accuracy(full bandwidth) | Single: ±(1 interval time+100ppmr×eading+0.6ns) Average>16:±(1 interval time+100ppm×reading+0.4ns) | |
Input coupling | DC, AC, GND | |
Displacement | ±1V(5mV-50mV), ±10V(100mV-1mV), ±100V(2V-10V) | |
Vertical resolution (A/D) | 8 bit (2 channels simultaneously ) | |
Vertical sensitivity | 2mV/div~10V/div(at input) | |
Trigger type | Edge, Video, Alternate, Pulse, Slope | |
Trigger mode | Auto, Normal, Single | |
Trigger level | ±6 divisions from screen center | |
Acquisition modes | Sample, Peak Detect and Average | |
Line/field frequency(Video) | Support NTSC, PAL and SECAM | |
Cursor measurement | T and T between cursors | |
Automatic Measurement | Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot | |
Waveform math | +, -, ×, ÷,FFT | |
Waveform storage | 4 waveforms | |
Lissajou’s | Bandwidth | 200MHz |
Phase difference | ±3 degrees | |
Communication interface | USB,Support USB Flash Disk Starage | |
Cymometer | Available | |
Power supply | 100V-240V AC, 50/60Hz, CAT | |
Power consumption | ≤15W | |
Fuse | 1A, T grade, 250V | |
With Logic analyzer interface stand by in your unit!
Support your DSO with LA function to become a MSO is never magic!
Application:
Electronic circuit debugging
Circuit testing
Design and manufacture
Design and manufacture
Automobile maintenance and testing
