| 原産地: | 中国(本土) | モデル番号: | bts802er |
包装
| 包装: | デバイスは、 機器内に詰まるケース、 を採用し、 ケースは、 ダンボール箱に梱包、 長い間に適することができる時間の出荷 |

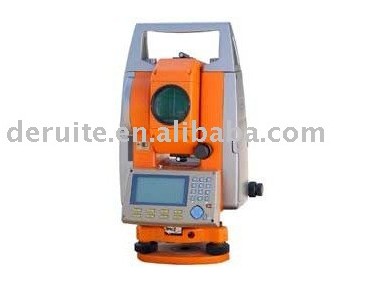

total station BTS802ER
BTS802ER Total station is based on BTS800E total stion. It has a comprehensive upgrading of software and prismless technologies,a stable and reliable performance.
SPECIFICATION:
| Measurement | Measuring mode | Incremental mode |
| Signal collection mode | 2signal for horizontal | |
| 1 signal for vertical | ||
| Accuracy | 2second | |
| Minimum reading | 1″/5″ | |
| Diameter of circles | 0.1″ | |
| Compensator | Sensor | Double axis compensator |
| Range of compensator | ±3′ | |
| Measuring distance | Distance | white goal:200m |
| transportation index plate:500m | ||
| single prism:5km | ||
| measuring accuracy | ±(2mm+2ppm·D)/±(3mm+2ppm·D) | |
| Functions of software | meet different requirements of measure coordinate | |
| layout measurement,offer set measurement | ||
| resection measurement,area calculation | ||
| substence measurement,measurement of suspension height height | ||
| Memory | 50000 | |
