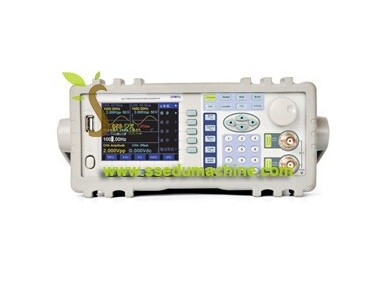

ZTF20B DDS Digital Synthesis Function Generator Scientific Instrument
Electronics Meter Technical parameter
1.output A Feature
waveform feature
waveform kind | Sine wave, square wave, Sawtooth wave, pulse wave etc. 32 kinds waveform |
waveform length | 1024 points sampling speed rate:100MSa/S |
waveform amplitude resolution | 8bits |
Sine wave harmonic reject | ≥40dBc(less than 1MHz),≥35dBc(1MHz~10MHz) |
Sine wave total distortion | ≤1%(20Hz~200kHz) |
Sine wave rising falling edge time | ≤35nS overshoot impulse :≤10% |
Square wave duty ratio | 1%~99% |
frequency feature
frequency range | sine wave:40mHz~20MHz |
Other waveform:40mHz~1MHz | |
frequency resolution | 40mHz |
frequency accuracy | ±(5×10-5+40mHz) |
frequency stability | ±5×10-6/3 hours |
amplitude feature
amplitude range | 2mVpp~20Vpp 40mHz~10MHz( high resistor ) |
2mVpp~15Vpp 10MHz~15MHz( high resistor ) | |
2mVpp~8Vpp 15MHz~20MHz( high resistor ) | |
resolution | 20mVpp( amplitude more than about 2Vpp),2mVpp( amplitude less than about 2V) |
amplitude accuracy | ±(1%+2mVrms)( high resistor, RMS,frequency1kHz) |
amplitude stability | ±0.5%/3 hours |
amplitude flatness | ±5%(frequency less than 10MHz), ±10%(10MHz less than frequency) |
output resistance | 50Ω |
offset feature
offset range | ±10V( high resistor, attenuation( 0dB)resolution:20mVdc |
offset accuracy | ±(1%+20mVdc) |
sweep feature (frequency linear sweep )
sweep range | Start point and end point Arbitrary set |
sweep step | > resolution Arbitrary value |
sweep speed rate | 10mS~60S/step |
sweep mode | forward direction sweep ,reverse sweep, forward direction and reverse sweep |
FM feature
carrier wave signal | A road signal |
Modulate signal | internal B road signal or external signal |
FM depth | 0%~20% |
Key control feature
FSK | carrier wave frequency and jump frequency Arbitrary set |
ASK | carrier wave amplitude and jump amplitude Arbitrary set |
PSK | Jump phase position:0~360°, highest resolution:1° |
Alternate speed rate | 10mS~60S |
burst feature
carrier wave signal | A road signal |
trigger signal | TTL_A road signal |
burst count | 1-65000 numbers of period |
burst mode | internal TTL, external, single time |
2. output B feature
waveform feature
waveform kind | Sine wave, square wave, Sawtooth wave, pulse wave etc. 32 kinds waveform |
waveform length | 1024points sampling speed rate:12.5MSa/S |
waveform amplitude resolution | 8bits |
Square wave duty ratio | 1%~99% |
frequency feature
frequency range | sine wave:40mHz~1MHz other waveform, 10mHz~100kHz |
frequency resolution | 10mHz |
frequency accuracy | ±(1×10-5+10mHz) |
amplitude feature
amplitude range | 50mVpp~20Vpp ( high resistor ) resolution:20mVpp |
output resistance | 50Ω |
burst feature
carrier wave signal | B road signal |
trigger signal | TTL_B road signal |
burst count | 1-65000 numbers of period |
burst mode | internal TTL, external, single time |
3.TTL output feature
waveform feature: square wave, rise fall time ≤20nS
frequency feature:40mHz~1MHz
amplitude feature: TTL, CMOS compatible, low level is less than 0.3V, high level is more than 4V
4 General feature
Power | Voltage:AC220V(1±10%) |
Environment | Temperature:0~40 humidity less than 80% |
Operate feature | Fully key control operation, button continuous rotary |
Display mode | TFT LCD, 320*240,Chinese/English manual |
Dimension | 415mm×295mm×195mm(L×W×H) |
Weight | 3.5kg |
Manufacture technology | Surface mount circuit technology, large scale integrated circuit, long use life |
