| 原産地: | 中国(本土) | 銘柄: | sico | モデル番号: | SC601 | 正確さのクラス: | 0.2 | 電流出力: | ビットd/a | 入力電圧信号範囲: | 0〜500vac |
包装
| 包装: | カートン |

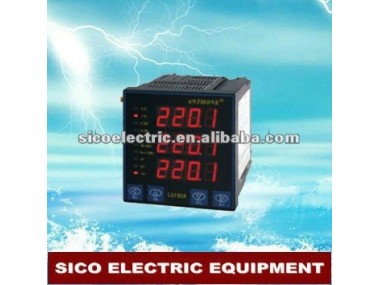

SC601 Power Measuring Instrument / ammeter
Detailed Product Description
Suitable for accurate measurement of AC voltage, current or power
Product description:
Main Features:
- Equipped with alternative voltage and alternative current signal inputs isolated by transformer. It provides the functions of communication, retransmission and alarm. The main board is isolated with heavy current.
- Measurement accuracy is 0.2%FS.
- Provide dual display instrument.
- Up to four channels of alarm, including two high limit alarms and two low limit alarms, Introduce digital calibration technology, easy to operate and maintenance free, automatically adapted to 50Hz/60Hz power measurement.
- Support RS485 and RS232C communication interface and AIBUS communication protocol, which is 3 to 5 times faster than other field protocols.
- Provide signal retransmission functions with transmission accuracy of 0.2%F.S. able to output standard industrial signal.
- Universal power supply of 100-240VAC or 24VDC and various installation dimensions for users to choose from.
- High quality and latest hardware design using high performance electronic components energy efficient less temperature drifting provides higher stability and reliability.
- ISO9001 and CE certified, achieving world class level of quality, anti-interference ability and safety.
Specification:
| Module | Module Descriptions | MIO | OUTP | ALM | AUX | COMM |
| N | no module installed | √ | √ | √ | √ | √ |
V10/V12 /V24 | Isolated 10V, 12V or 24V DC output with maximum current 50mA. (use instrument’s internal 24V isolated power) | √ | ||||
| L1 | 1 relay contact output (Capacity: 2A/250VAC, normal open terminal can absorb spark) | √ | √ | |||
| L2 | 1 relay contact (NO+NC) output. (small volume, 30VDC/1A, 250VAC/1A) | √ | √ | |||
| L5 | 2 relay contact(ON) outputs.(30VDC/1A,264C/1A) | √ | √ | |||
| X3 | 0~20/4~20mA linear current output module. (Use internal 12VDV power of the instrument) | √ | ||||
| X5 | 0~20/4~20mA linear current output module. (With its own isolated power) | √ | ||||
| S | Photoelectric isolated RS485 communication module (use instrument’s internal 12V isolated power) | √ | ||||
| S4 | Photoelectric isolated RS485 communication module with its own photoelectric isolated power | √ |
