| 供給電圧: | 160〜280ボルト/ 50 ｈｚまたは90〜150ボルト/ 60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | wanf | モデル番号: | WF-D02B | 実用温度: | - 10〜60℃ | 次元: | 110*64*63ミリメートル | 測定範囲: | 0〜3000ワット | 正確さのクラス: | ± 1% |
包装
| 包装: | 梱包詳細:カートンサイズ: 43.5*43.5*38.5センチメートルブリスター包装: 42ピース/ ctn用euバージョン、gw 8.2kgs; 56ピース/ ctnのための他のバージョン、gw 10.5kgs;ギフトボックスパッキング: 48ピース/ ctn用euバージョン、gw 15.5kgs; 60ピース/ ctnのための他のバージョン、gw 17kgs |

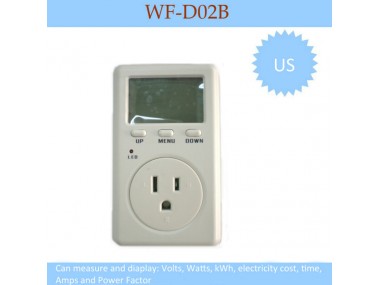

This product not only provides power connection for the electric appliances; but alsorecords operations of the appliances.Operation conditions on the display includes: voltage of power supply, real-time running power, real-time current, electricity consumption, electricity cost, power factor, running time… At the same time, it provides analysis on real-time running power and gives out alarm automatically once abnormal operation occurs. This helps to use and maintain theappliances scientifically as well as save power and reduce waste. So, it is also called “power-saving guardian”.
* Measure real-time voltage (90~150V AC or 160~280V AC);
* Measure real-time operation power (0~3000W);
* Show the electricity consumption (0~9999kWh);
* Calculate electricity cost (0~$9999);
* Operation condition monitor
* Show the operation time of appliances (0~24h~9999d)
* Current:0~15A
* Power factor: 0~99.9%
* APPROVAL: CE, RoHS
Parameters:
* Voltage: 90~150V AC,160~280V AC;50/60Hz;
* Peak load: 15A
* Temperature: -10~60°C
* Humidity: 10~95% RH
Increase of power factor test and display the current function
