| 電圧: | acc220±10 % 50/60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | roundss | モデル番号: | zs | 実用温度: | 0-+ 55 ℃ (非結露) | ジスプレー体: | アナログとデジタル | 次元: | 96*48*110 | 測定範囲: | 0-999999 | 入力信号: | h: 7-28 ボルト; l:-3 〜 1 ボルト | 相: | 3相 | 周波数応答: | 50 Khz |
包装
| 包装: | カートン |

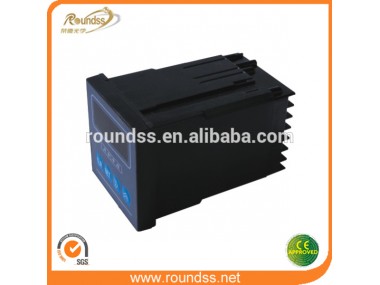

Digital Panel Meter
| Supply Voltage | Acc220±10% 50/60Hz |
| Power Consumption | 5VA |
| Insulation Resistance | DC500V 10MΩ |
| withstands voltage | AC1500V 1Minite |
| Storage Temperature | -10-+55°C |
| Working Temperature | 0-+55°C(Non condensation) |
| Working Humidity | RH30-80%(Non condensation) |
| Weight | Appr. 300g |
| Dimension | 96*48*110 |
| Power Supply | DC12V±10% 125mA; 5V±5% 200mA |
| Input Signal | H:7-28V L:-3-1V |
| Frequency Response | 50kHz |
| Input signal | Voltage/Complementary/Current/Line driver(26LS31) |
| Display | 4-6 Digits Red(green)LED |
| Display Range | 0-+999999 |
| Input Resistance | 8kΩ |
Mechanical dimensions
