| 原産地: | 中国(本土) | 銘柄: | zhyq | モデル番号: | Pt124b-240 | アプリケーション: | エンジンオイル、 absシステム、 燃料ポンプ、 等 | 圧力範囲: | 0~1bar~60bar1/8 圧力センサ | 精度: | 0.5パーセントfs1/8 圧力センサ | 出力: | 4-20ma、 0-5v、 0-10v、 0.5-4.5v | 電源: | 24vdc( 12~36v) 1月8 圧力センサ | 証明書: | ce、 iso9001 |
包装
| 包装: | 標準オートエンジンオイル1/8 輸出パッキング圧力センサ |

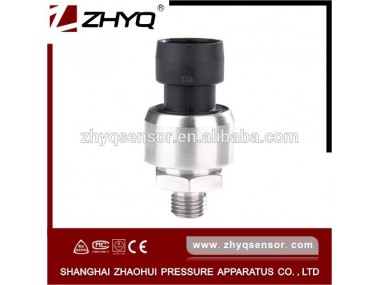

Auto Engine oil 1/8'' pressure sensor
Descriptions
1. PT124B-240 series engine oil pressure sensor adopts thick film pressure sensor chips and specific integrated circuit (ASIC).
2. It can add over-voltage protection, Reverse polarity protection and short circuit protection, EMC protection function;
3. It is especially suitable for the bad environment, can be used in the conditions of high and low temperature, vibration, thermal shock and mechanical shock, chemical pollution and so on,
4. It is mainly used for the pressure measurement in auto engine oil and gear box engine oil.
Feature
Superior long term stability 1/8'' pressure sensor
Temperature compensated over wide range
Low power consumption 1/8'' pressure sensor
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options 1/8'' pressure sensor
Application
Engine oil
ABS system
Fuel pump
Fuel cylinder high-pressure common rail system
Automotive & air-condition pressure measuring
Specification
Range | 0….1bar to 0….60bar 1/8'' pressure sensor |
Accuracy | 1.0%FS; 0.5%FS |
Linear | 0.02%FS 1/8'' pressure sensor |
Reliability | 0.05%FS 1/8'' pressure sensor |
Output | 0.5-4.5V; 0-5V ; 1-5V; 4-20mA, |
Input Voltage | 5VDC, 24(12-36V)DC |
Operating Temperature | -20°C~120°C |
Compensation Temperature | -10~65°C(Standard compensation) |
Over Pressure | 150%FS |
Case material | 304 SS |
Electric Connection | Packard connector 1/8'' pressure sensor |
Process Connection | 1/4NPT, 1/8-27NPT, 7/16-20UNF (Optional) |
Dimension
