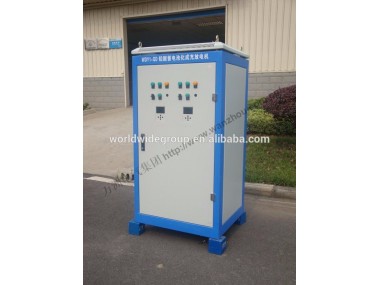

battery charge and discharge machine controller

Range of application:

Suitable for charge, discharge battery , measurement of various lead-acid battery and alkaline battery

Working Principle:

The device adopt advanced double closed loops PID feedback control technology, to commutate toward working voltage and current of charge and discharge machine

MIcro controller give voltage and curent signals according to program set and calculate compare with DC side voltage and current signal that close loop system feedback

By regulating circuit, it controls touching pulse output by phase shift chip to arouse thyristor to commutate as well as change electricity charge and discharge by contactor.

When the machine is on work, system can timely feedback voltage and current signals of DC side. one hand, comparing to set point it automatically regulate to make set point keep accordance with voltage/current parameters,  another hand, it transmit these signals to micro controller and display the actual numbers timely on the LCD board by calculation

Performance and characteristic

Energy saving: adopting active contravariant to feed back energy of battery into power network when it discharge , so the energy loss will be greatly reduced

Practicability; several modes of charging and discharging. It automatically change for different section by time, power capacity ,voltage.

Safety: Complete protection function for both software and hardware. also had malfunction protection of over/lower voltage, current cut, over/lower current, over heat

Micro-computer control, Host computer contorl system, Power off protection function, Data collection, Date-processing, Stable performance

Scheme drawing:

1) hardware frame drawing
