| 原産地: | 中国(本土) | 銘柄: | 紅旗 | モデル番号: | 圧力測定器 | 製品: | 圧力測定器 | 建設: | ラジアル、アキシャル、フランジ付き、バックでフランジ | 測定範囲: | -0.1〜250Mpa、-1〜2500bar、-1〜2500psi-1〜2500キログラム/cm2 | メディア: | ガスまたは液体が腐食しない銅または銅合金 | タイプ: | ブラックケース圧力測定器 | 直径: | 40ミリメートル〜250ミリメートル | 精度: | 1.0%、1.5%、1.6%、2.5% | ケース素材: | プラスチック、ステンレス鋼、鋼 | マシンコア: | 真鍮、ステンレス鋼 | 使用温度: | -40℃〜70℃-25℃〜55℃ |
包装
| 包装: | 圧力が測定器のためのパッキングは次のとおりです: 内部のパッキング: 普通の箱/泡箱/plastic1のpcのため、 外のパッキング: ダブル段ボールボックスの50個または30個または100個、 出荷梱包:/fcllcl( 755ctns1容器のための) |
Application Description

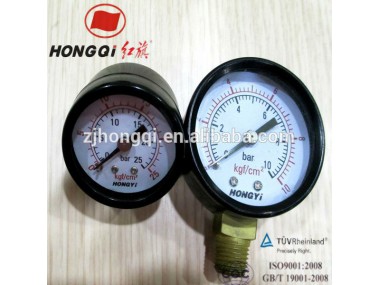

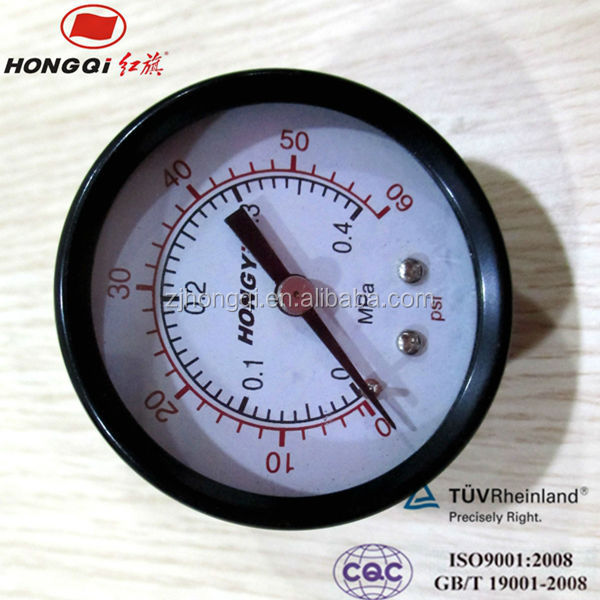

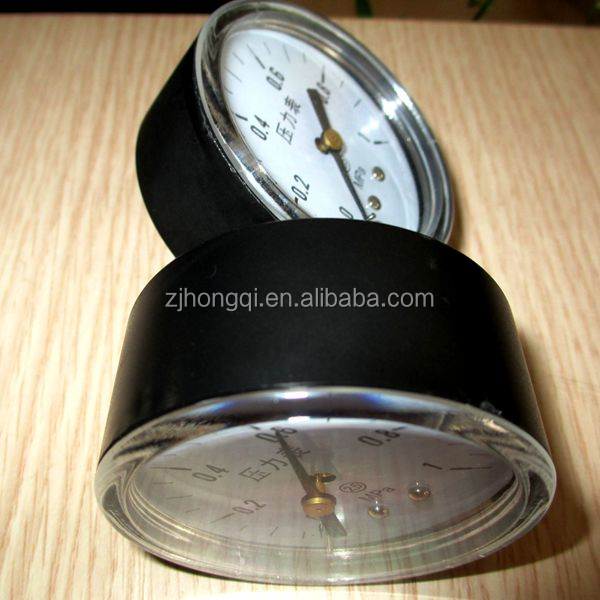

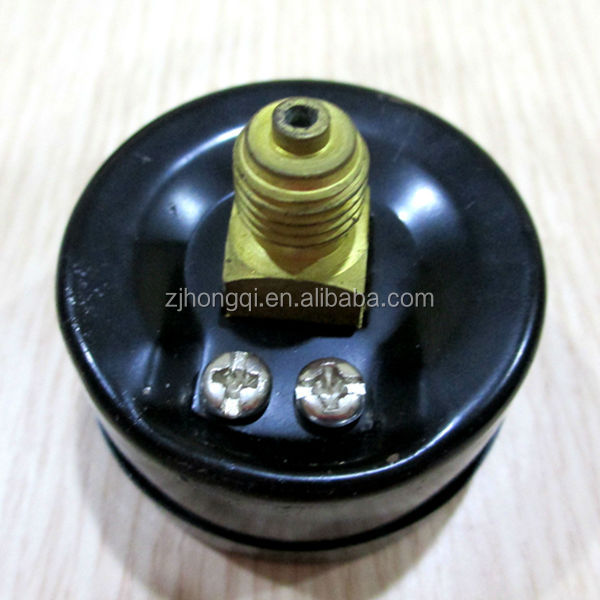

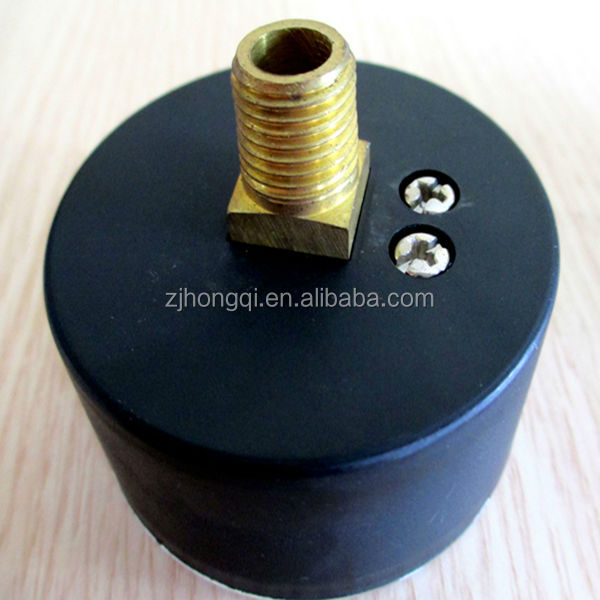

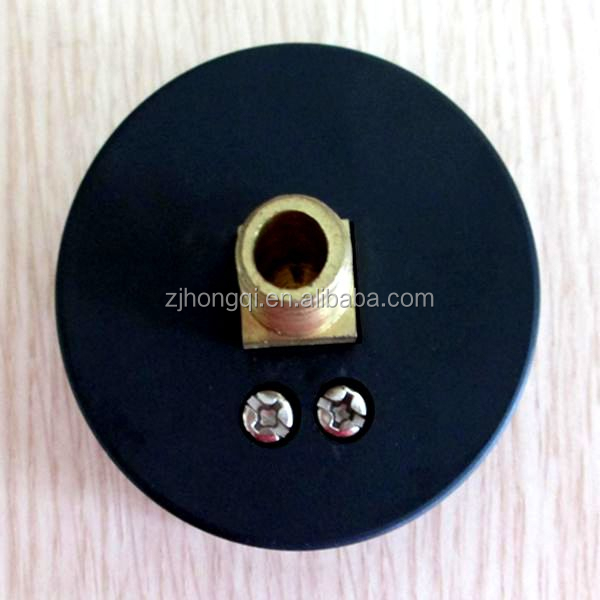

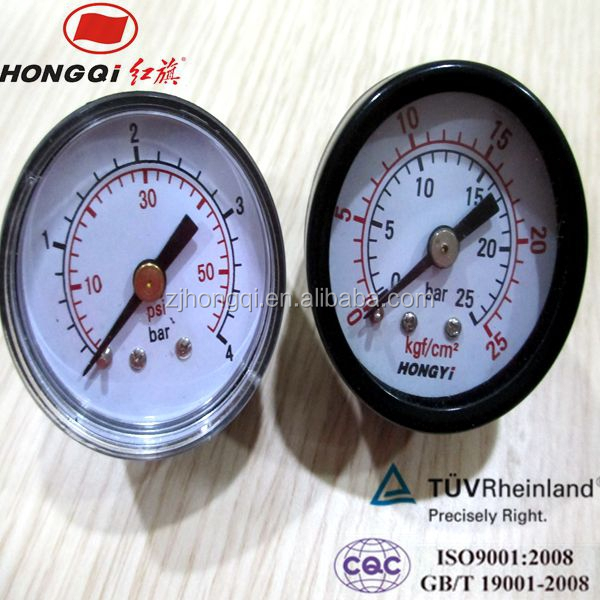

Black case pressure measuring instrument with factory price .
The pressure measuring instrument is well suited for measuring those gases or liquids which will neither explode,nor crystallize, nor corrode copper or copper alloys.
Detail information
| product | Type | construction | Size (mm) | Measuring range(mpa ) | material description | media | Measuring range(bar) | |
| pressure measuring instrument | General pressure gauge | Radial Axial With Flange Back with flange | 1.5''~2'' 40to … 50mm | -0.1 ~0 , -0.06 ~0, 0~0.06... 250, -0.1~0.06…2.4 | casing:steel, plastic ,stainless steel movement:brass bourdon tube:phosphor bronze | gases or liquids which will not corrode copper or copper alloys | -1 ~0 , -0.6 ~0, 0~0.6... 2500, -1~0.6…24 | |
1.Casing:Steel, plastic, stainless steel
2.Movement:Brass
3.Bourdon tube:Phosphor bronze or brass
4.Work condition:-40~70°C,relative humidity is no more than 85%.
* Our company can accept the order with special requirement of customers.
Main technology data:
1.Accuracy(%):2.5/1.6
2.Use temperature: -40~70°C,relative humidity is no more than 85%
3.Temperature influence:when the environment temperature deviate from 20±5°C,the additional error is no more than 0.4%/10°C.

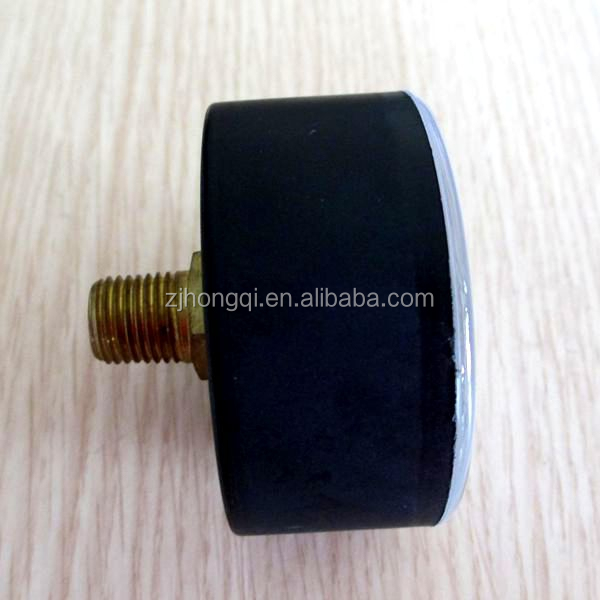

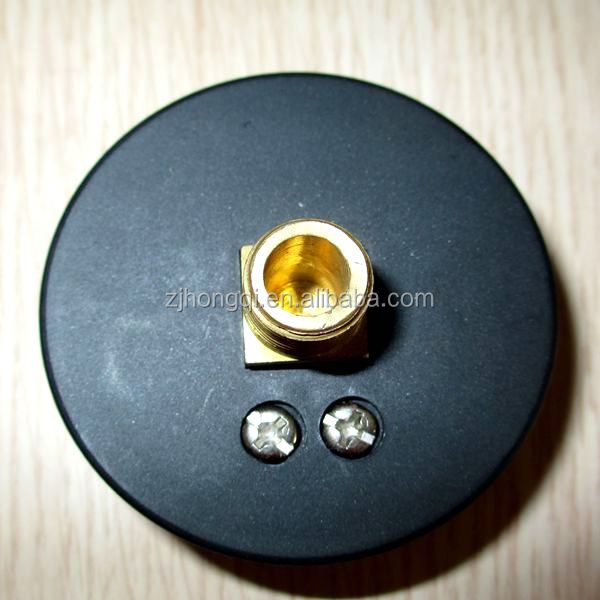

4.Connecting thread:M20*1.5 M16*1.5 M14*1.5 M12*1.5 M10*1.5 1/2'' 1/4'' 1/8''(Special thread are as required)
Instructions
1. The pressure measuring instrument is suited for measuring those gases or liquids which will not corrode copper or copper alloys.
2.Recheck before use, only qualified can be use and pay attention to the factory validity period.
3.The up limit is no more than 3/4 when using the pressure gauge, while measuring fluctuations pressure is no more than 2/3,
and the lowest pressure is not less than one third of up limit in these two situations.
4.The gauge should be installed in the same horizontal line with the measuring point, working temperature is -40°C~70°C,relative humidity is no more than 80%.
5.The gauge which is in use should be tested every two month,and If a failure occurs(like the pointer not work and Internal parts loose and reading error increases and so on). It should check and repair immediately or send it to factory to repair.
6.In the condition of the user obey the use and storage rules,manufacturer responsible for the free repair or replacement the gauge after factory in 18 months
when the gauge didn’t work due to manufacturing poor.
