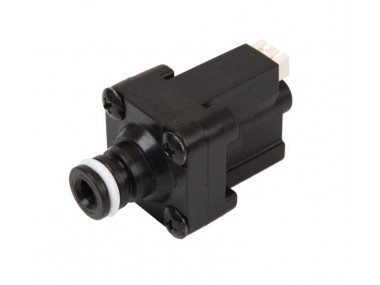

原産地: | 南朝鮮 | 銘柄: | shineui | モデル番号: | swps 04 | センシング圧力の水で ホーム ガス: | 0 〜 4 バー |
Medium air or water
Pressure range 0 ~ 4 bar(This can be changed by an orderer)
Rupture pressure 10 bar
Materials in contact with medium - Cover : PA66(GF 30%)
- Diaphragm : EPDM
- Sensor : Hall
Temperature - Medium and ambient : 0 °C ~ 80 °C(It shall not be frozen)
- Ambient : 0 °C ~ 80 °C
- Storage : -30 °C ~ 80 °C
Power supply/Output :
- Power supply : DC 5V
- Output : 0.5V ~ 4.5V
Current consumption : less than 15mA
Pressure connection :
PF 1/4”or Plug connector Ø 15mm(Refer to Dimension)
Electrical connection : YEONHO, SMH250-03
Weight : 42g
Installation Direction : Free
Protection standard : IP 00
Accuracy : ±3.0(% FSS)(Included hysteresis value)
This item is used mainly home-gas boiler. And it measures water-pressure in the heating pipe.
And it sends electical signal to control circuit. If the users use this one, they will be so convinient because it announcing water-pressure. This is very linearity and excellent.
