| 原産地: | インド | 銘柄: | eapl | モデル番号: | H3TX-Ua | 理論: | 温度調節器 | 温度範囲: | 0に600-Jタイプ、0に200-Kタイプ、-100に300-PT 100 (オン/オフ) | 正確さ: | ± (0.5%のフルスケール) ± 1度摂氏 | 使用法: | 産業 | 製品名: | rs。1170 |
包装
| 包装: | デュプレックスボード-139 × 59 × 52 (長さ) mm単位で |

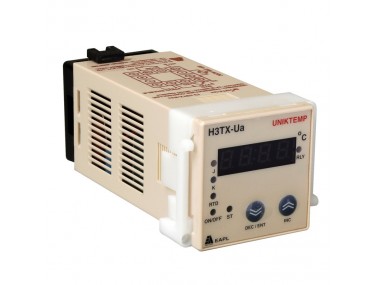

H3TX-Ua- Universal Temperature Controller, 85-270V AC/DC, J, K, PT-100
Dimension: 48x48x115mm(W x H x D)
Features:
* 3 1/2 digit, 7 segment LED temperature display
* Wide voltage range (85-270V AC / DC)
* Universal input (J / K / PT-100)
* LED indication for sensor, relay and function
* Sensor, function, Offset, Hysteresis parameters can be locked (by opening the short link of designated
terminals) against unauthorized tampering.
* Dual function (On-Off or Self-Tune)
* Single set point with relay output
* Single window display for both set and process values
* Temperature offset calibration user settable
