| 原産地: | 中国(本土) | 銘柄: | 将来光学系 | モデル番号: | Dbmvv5000cl-5b | 理論: | ビデオ顕微鏡 | 光学接眼レンズ: | Wf10x-18mm | ノーズピース: | 四ノーズピース正のクリックストッパー | コンデンサー: | N。、。 虹彩絞り1.25とアッベコンデンサー | 照明: | ハロゲン球6v/20wac85-230v | フレームレート: | 10fps@2592*1944 | 解像度: | 2592*1944 | 感度: | 1.4v/lux-sec | デジタル倍率: | 120倍 | ダイナミックレンジ: | 70.1db | ソフトウェア: | 将来勝つジョー |
包装
| 包装: | 寸法: ××36.5cm25.3cm46.8cm重量: 3.52kg |
♦Applications:

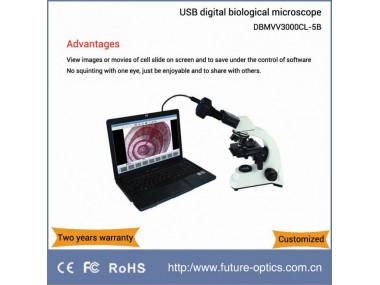

By connecting with PC, you can view images or movies of cell slide on screen and to save under the control of software. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in education and hobby.
♦Benefits:
1. Easy installation, convenient operation;
2. Wide field and bright image;
3. Compatibility with Win/MAC;
4. High resolution image of 2592*1944 for preview, picture shoot and video recording;
5. High frame rate .
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code:2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Main specifications:
Digital eyepiece | 5.0 MP USB digital camera equipped with built-in relay lens |
Active resolution of sensor | 2592*1944 |
Sensitivity | 1.4V/ lux-sec |
Dynamic rage | 70.1 dB |
frame rate | 10fps@2592*1944 |
Total magnification (optical eyepiece loaded ) | 40X, 100X, 400X, 1000X |
Equivalent magnification of digital eyepiece | 28X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) | 112X, 280X, 1120X,2800X |
Optical eyepiece | WF10X-18mm |
Viewing head | Binocular head of articulated type, interpupillary distance 55-75mm |
Nosepiece | Quadruple nosepiece with positive click stopper |
Achromatic objective (DIN45mm) | DIN achromatic objective: 4X / NA0.10, 10X / NA0.25, 40X R/ NA0.65, 100X R(oil)/ NA1.25. |
Stage | Built-in mechanical stage 142mmX132mm with specimen holder, controlled by coaxial knobs at low position. |
Condenser | N.A. 1.25 Abbe condenser with Iris diaphragm |
Illumination | Halogen bulb 6V / 20W AC85-230V |
CD of software | Future Win Joe imaging software |
Packing | Carton size: 36.5cm X 25.3cm X 46.8cm |
Trade information
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western unio, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s /confirm/iation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
