| 原産地: | 中国(本土) | 銘柄: | フェニックス | モデル番号: | YYQ-160A | 使用法: | バランスをとる機械 | 力: | 電子 | 製品名: | クランクシャフトプーリバランシングマシン | 認証: | ce、ccc、soncap | quatliay制御: | iso9001 | 無料: | 海によってまたは空気 | ローディング: | 強力な木製パレット | サービス: | 生涯サービスサポート | 工場: | 専門メーカー | コンピュータ: | windowsシステム | 電圧: | 220ボルト | ワラント時間: | 一年 |
包装
| 包装: | で標準木製パッケージプーリークランクシャフトバランシング、バランシングプーリー機 |
Pulley crankshaft balancing , balancing pulley machine
Specifications
Balancing Machine for Turbocharger, Turbine,Compressor,Impeller,Rotor
Simple
1,high precision 2,high quality
3,high efficiency 4,low failure rate
Optional function
1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition
Range of Application
This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of our customers.
Design
Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
Production Parameters
Technical data at a glance | YYQ-160A |
Mass scope of workpiece kg | 2-160 |
Biggest diameter workpiece mm | 950 |
Two span of supports mm | 80-1400 |
With a diameter circle in drag mm | 30-300 |
Trunnion support mm | 10-90 |
Balancing speed r/min | 300-2500 |
Min achievable residual unbalance amount | ≤0.5gmm/kg |
Unbalance reduction ratio % | ≥90% |
Motor power | 1.5KW |
mode of speed regulation | Variable frequency speed regulation |
Transmission model | Circle with |

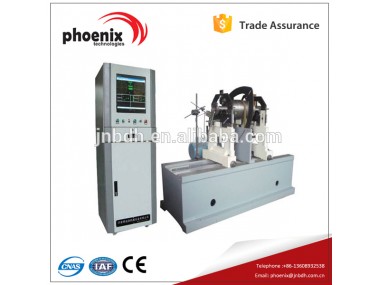

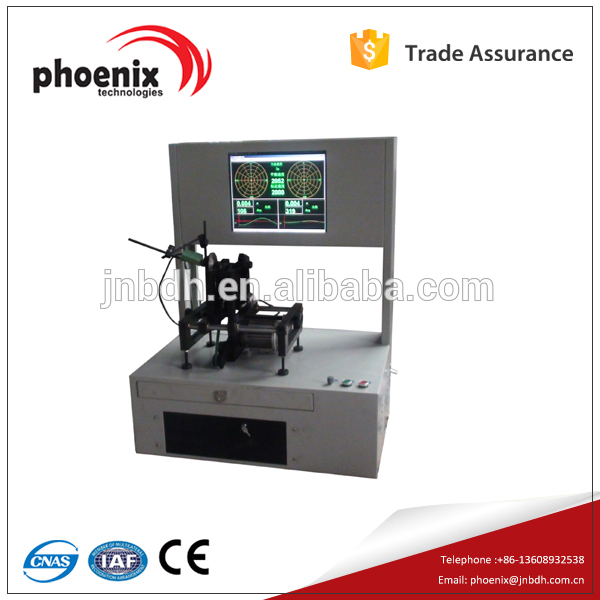

Pulley crankshaft balancing , balancing pulley machine pictures
