| 原産地: | 中国(本土) | 銘柄: | 時間 | モデル番号: | 3221 | 使用法: | 表面粗さ計価格 | 力: | 電子 | メインユニット: | 882-121 | 標準ピックアップ: | 1 | 標準サンプル: | 1 | 電源アダプタ: | 1 | 通信ケーブル: | 1 | 保護スリーブ: | 1 | 保証: | 18ヶ月 | アダプタ: | 1 | 磁気ベース: | 1 |
包装
| 包装: | iso証明書テスター表面粗さ計価格:各楽器とその付属品に入れプラスチックケースその後置くはプラスチックケースに入れ紙箱付きプラスチック泡。 |

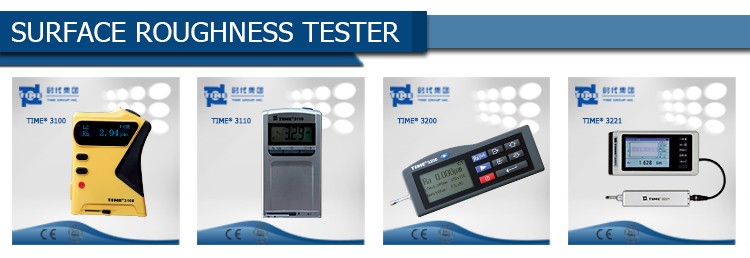

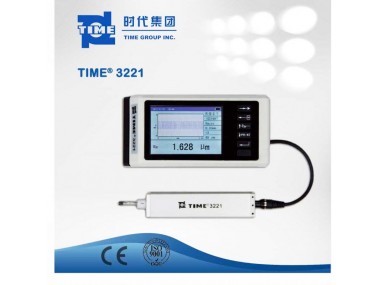

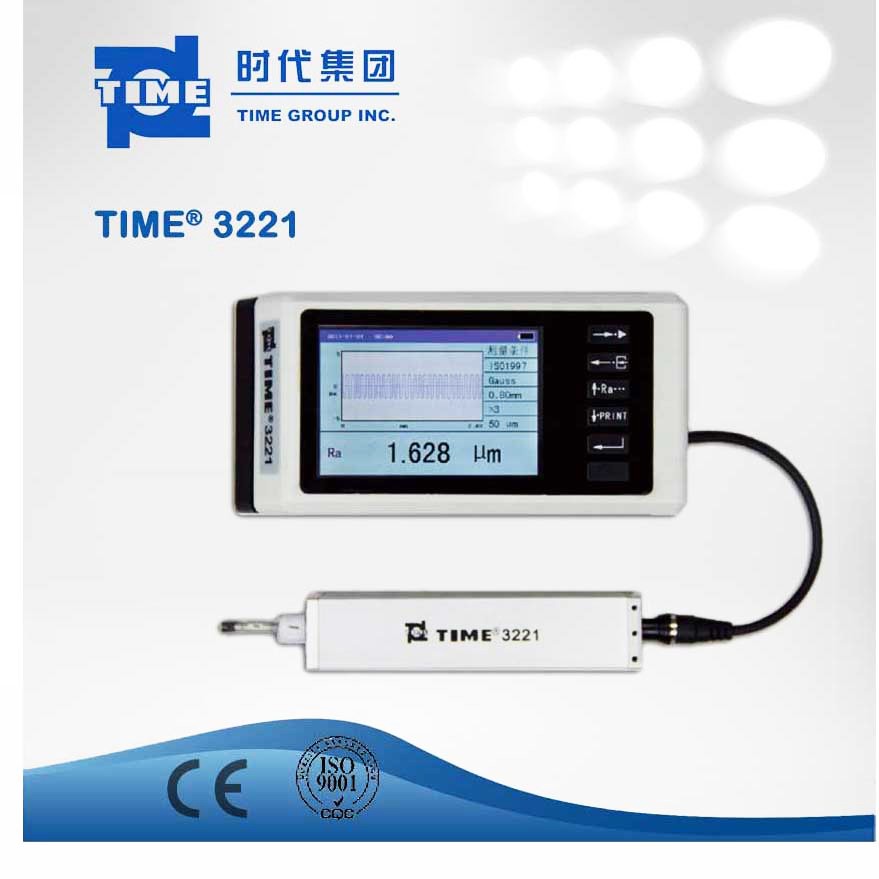

ISO Certificate Tester Surface Roughness Tester Price
Product Description| Test principle | Inductance type | |
| Measurement range | 400μm | |
| Stylus tip radius | 5μm/2μm | |
| Stylus tip material | Diamond | |
| Measuring force | 4mN/0.75 mN | |
| Stylus tip angle | 90º/60º | |
| Radius of skid curvature | 45mm | |
| Maximum drive range | 19mm/0.748inch | |
| Traversing speed | Measuring: | |
| Cut off length = 0.08 mm Vt=0.25 mm/s | ||
| Cut off length = 0.25 mm Vt=0.25mm/s | ||
| Cut off length = 0.8 mm Vt=0.5 mm/s | ||
| Cut off length = 2.5mm Vt=1mm/s | ||
| Returning V=1mm/s | ||
| Accuracy | Less than or equal to ±10% | |
| Repeatability | ≤6% | |
| Cut-off length | 0.08mm,0.25mm,0.8mm,2.5mm,selectable | |
| evaluation length | (1~5 )L selectable | |
| Measuring rang and resolution | Measuring range | Resolution |
| Automatic | 0.001μm,0.008μm | |
| ±50μm | 0.001μm | |
| ±200μm | 0.008μm | |
| Power | Built-in Li battery | |
| Power adapter | Input: 100 V~240VAC,50/60Hz | |
| Output: 9V,3A | ||
| Working environment | Temperature: 0~40 | |
| Humidity: < 90% RH | ||
| Dimensions (mm) | 155.4×75×53 | |
| Weight (g) | 580 | |
