• 油圧オイル圧力ゲージ/油圧圧力計テスター/油圧システムテスター-その他測定器・分析器
    商品番号: 11554437
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: 高い土地 モデル番号: MYHT-1-4
    保証: 1年 流量: 400l/min 精密: ± 1%
    温度: 150℃ 圧力: 420bar 正味重量: 8.8キログラム
    仕様: 295 × 265 × 210ミリメートル パッケージ: 木製ケース 色: グリーンまたはグレー

    包装

    包装: 木製ケース

    hydraulic oil pressure gauges/hydraulic pressure gauge tester/hydraulic pump tester for sale



    Features

    1. Accurate measurement of flow ,pressure, peak pressure and temperature .
    2. Safe to use in both directions of flow. Internal oil by-pass protects muitimeter and operate against overpressure
    3. Bi-directional for unrestricted connection and simplified testing.
    4. Fast checks on pumps ,motors, valves ,cylinders ,hydrostatic transmissions.
    5. Easy to operate controls. Connect into the hydraulic system and simply ‘switch on”.
    6. Portable and lightweight with the case for easier viewing and cleaning.
    7. Rechargeable power: lithium battedes 12v.

    Connections

    Flow block connection by flexible hoses 3-6 feet (1-2 meters)



    Adaptors

    Adaptor fitting kits and flanges are available to suit the range of flow blocks.



    Installation

    MYTH series hydraulic tester can be installed at any point in hydraulic pipeline .The hydraulic oil flow from input to output (input) of the hydraulic tester must keep over 30cm from elbows /the links and valves.



    Attention:

    You must open the loading valve when you start the instrument .If the loading valve is closed , it is dangerous.

    1)       once the hydraulic tester works ,it could be regulated by loading valve.

    2)       The cold weather could effect the testing precision ,when the hydraulic oil keeps

              about 30? The hydraulic tester could work well.

    3)       Please close the switch after testing.

    4)       Please open pressure loading valve before testing.



    Technology data:



    ModelMax Flow(l/min)Max Pressure(bar)Weight(kg)Precision

    Temperature(°c)

    Dimension(mm)
    MYHT-1-22004206.1±1%150 295x265x210
    MYHT-1-44004208.8±1%150 295x265x210
    MYHT-1-550042010.2±1%150 295x265x210
    MYHT-1-780042014±1%150 310285x261

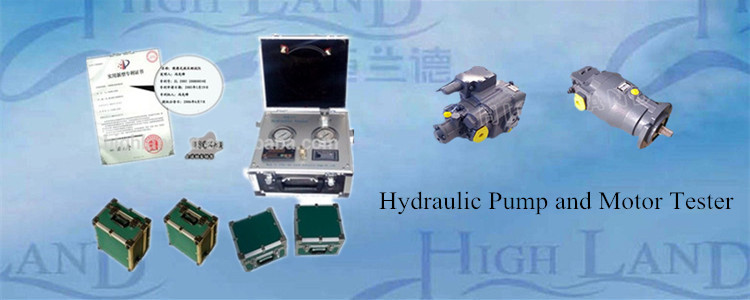

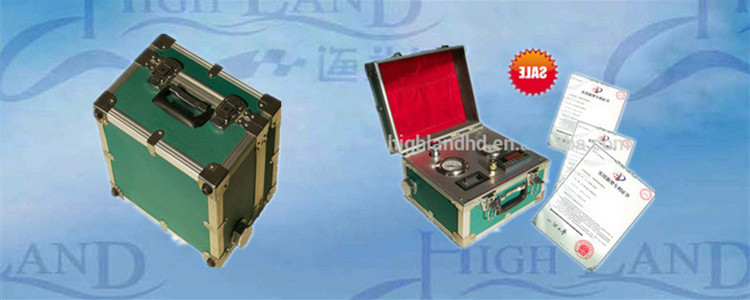

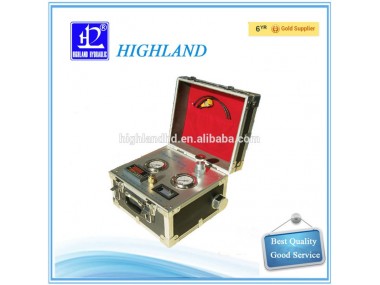

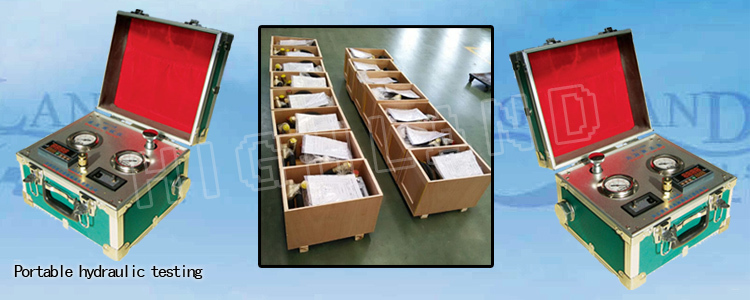

    Pictures of hydraulic system tester:



    油圧オイル圧力ゲージ/油圧圧力計テスター/油圧システムテスター仕入れ・メーカー・工場 油圧オイル圧力ゲージ/油圧圧力計テスター/油圧システムテスター仕入れ・メーカー・工場 油圧オイル圧力ゲージ/油圧圧力計テスター/油圧システムテスター仕入れ・メーカー・工場 -2_
