| 電圧: | 220v/50hz | 原産地: | 中国(本土) | 適用: | 化学薬品, 医学, 飲料, 食物 | ドライブの種類: | ・電気空気圧 | 銘柄: | Hc- パック | モデル番号: | Hcfk- 1200a | 重量: | 300キロについて | 自動等級: | 自動 | 包装タイプ: | ボトル | タイプ: | シール機 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 包装材料: | プラスチック | 条件: | 新しい | 次元(L*W*H): | 1500*600*1800mmについて | 力: | 3600ワット | シーリング速度: | 500-600bots/h | シール温度: | 50- 300â( 調整可能) | ジャーの高さを適用: | 75-250mm |
包装
| 包装: | 包装サイズ: 1500*600*1800mmパッケージについて: 木製のケースに詰めたとおしっこ- サポートされている材料包まれた |

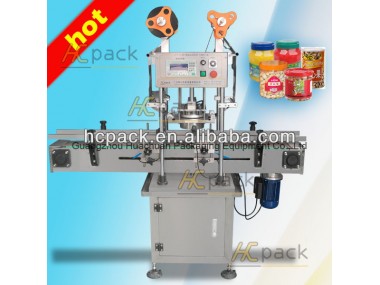

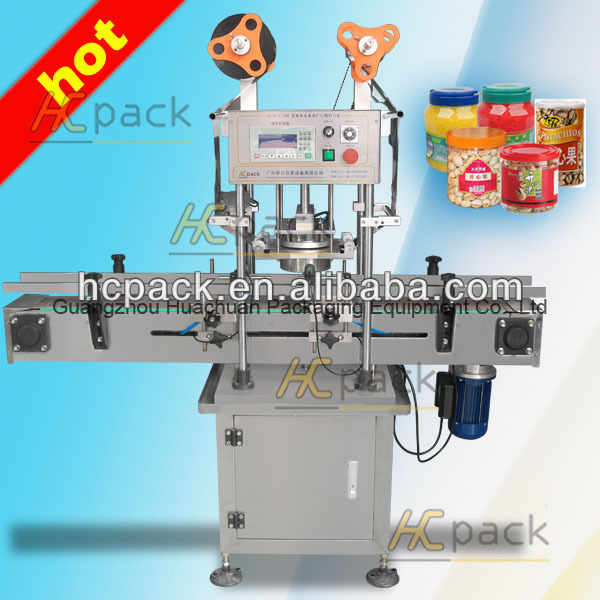

cup sealing machine ice cup machine
Main use:
The machine is wiely used for film nd aluminum foil sealing plastic jars in food and beverage, pharmaceuticals, chemicals and cosmetics.
Main features and performance:
1. The machine is mainly consist of framework, film-supplying device, film-collecting device, eat sealing cutter, automatic positioning system of bottles, electric and pneumatic control cabinet and the conveying system. It can automatically complete such processes as feeding in and out the bottles, consistent controlling temperature, supplying, cutting and collecting film;
2. The body of the machine is made of stainless steel and aluminium alloy, with good appearance, easy cleanliness and in conformity with food hygiene requirements;
3. This machine integrates the electric parts and pneumatic parts, controlled by PLC, with high automation, easy operation and maintenance. Thus it can improve work efficiency at a low labor intensity and labor cost;
4. The electric components all use some world-renowned brands of steady performance and long durability;
5. The temperature and time can be set according to production requirements to assure sealing quality;
6. The work procedure of this machine is to seal first, cap the next. The sealing effect is very straight and dependable.
Main technical parameters:
Model | HCFK-1200A |
Sealing range | φ70-φ150mm |
Sealing temperature | 50-300°C(adjustable) |
Sealing speed | 500-600bots/h |
Power | Pressure : 220V/ 50Hz Power: 3600W |
Air pressure | 0.8Mpa |
Sealingcaliber range | 50-120mm |
Height of jar applied | 75-250mm |
Controlling Form of Temperature and Deviation | Automatic; ±3°C |
Weight | about 300kg |
