| 電圧: | 380ボルト | 原産地: | 中国(本土) | 適用: | 飲料 | ドライブの種類: | 空気 | 銘柄: | worita | モデル番号: | WD-S150 | 重量: | 480キログラム | 自動等級: | 自動 | 包装タイプ: | 場合 | タイプ: | ラベル貼り機 | 認証: | iso9001 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 包装材料: | プラスチック, 木 | 条件: | 新しい | 次元(L*W*H): | 2220*11000*2100ミリメートル | 力: | 3kw | 原産地: | 江蘇省、 中国(本土) | 処理タイプ: | 炭酸飲料 | 処理: | スリーブラベリング | アプリケーション: | 飲料 | 包装材料: | ガラス |
包装
| 包装: | outter木ケース、 インナー包装紙フィルム |

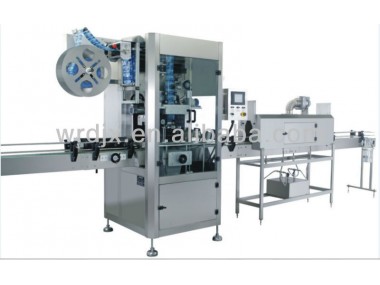

PET bottle auto sleeve labeling machinery
auto sleeve labeling machine
Application:
the cup printing machine is widely used in various of bottles labeling.
auto sleeve labeling machine
Features:
1.Whole machine frame is made out of stainless steel SUS304. The frame is siple, beauty, waterproof and don't rust. It is easily for cleansing
2.The especial cutting system: adopting the shisht and convolute technology. The label cutting is flatnot burr
3.The label location set assures the sleeving veracity.
4.adopting model group designmodule controlled; Achieve veracitily and fasy sleeving.
5.with the good quality touching operation screen, achieving operation by finger, easy and shortcut
6. It is a high automatic packing machine. Just one person handles. Easily operation
7.Easy to change packing material, the changeover of the mould can be easily done by hand without any tools
8.Within the flay width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic articles
9.High safety and stability for operation and saving time of manpower.
auto sleeve labeling machine
Main technical parameters:
| Electrical Source | 3&380/220VAC |
| Power | 3KW |
| Dimension | 850*800*2180(mm) |
| Packing Speed | 250BPM(MAX) |
| Bottle Dimension | 28-125*300(H)mm |
| Label Thickness | 0.035-0.07mm |
| Applied Material | PVC PET OPS |
| Label thickness | 30-250mm(MAX) |
| Total Weight | 450kg |
auto sleeve labeling machine
electronic component allocation list
| NO | NAME | BRAND |
1 | SUS304 stainless steel | South Korea |
| 2 | Electric Moter | TWT(TAIWAN) |
| 3 | Bearing | NSK MNB EZO IJK(JAPAN) |
| 4 | Servo Moter | Panasonic(JAPAN) |
| 5 | Servo Driver | Panasonic(JAPAN) |
| 6 | PLC | OMRON(JAPAN) |
| 7 | Frequency Converter | Telta(TAIWAN) |
| 8 | Touch screen | WEINVIEW (TAIWAN) |
| 9 | Contactor | SCHNEIDE (FRANCE) |
| 10 | Transducer | SUNX (JAPAN |
