| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | qcm | モデル番号: | QMB623W | 重量: | 9600 | 力(W): | 84000/114000 | CNCまたはない: | CNC | 保証: | 10年 | 条件: | 新しい | 認証: | ce。iso9000 | 次元(L*W*H): | 6000 × 2280 × 2090ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | モデル: | QMB623W | max作業幅: | 230ミリメートル | 最小作業幅: | 20ミリメートル | max作業厚さ: | 160ミリメートル | 最小作業厚さ: | 8ミリメートル | スピンドル。q。t: | 5 + 1 | スピンドル速度: | 6800 rの最小 | スピンドル径: | 40ミリメートル | 総電力: | 47.25 ' s 63 kwのhp | 重量: | 6000キログラム |
包装
| 包装: | エクスポートされたパッケージ、合板ボックスまたはフィルム |

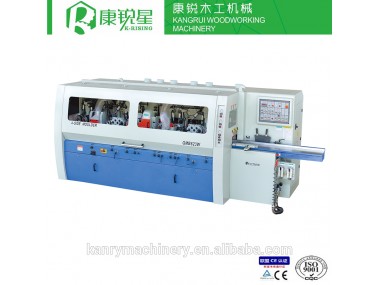

Kanry wood working machines QMB623W
Professional solution:The heavy-duty cutting for the big wood beam and big lumber.
All spindle's diameter is Φ50mm.And all the horizontal spindle are with the hydraulic out-support bearing device.
The feeding roller diameter is Φ180mm and the feeding workable is alloy steel,so the machine can make the heavy-duty cutting and wear-resistance.
Advantage:
1.The work table and machine frame adopt quality cast iron,which can keep the stable performance and good accuracy.
2.The complete closed structure safety hood and powe-off against opening device
4.The worktable adopts special wear resistance material,and done special treatment and plated hard chrome.So it is high precision and wll wear-resistance.
5.The rear-top/bottom horizontal spindle is wih hydraulic out-support bearing and sharper device,it improves the cutter's life and keep the powerful cutting and high quality.
6.The rear left/right vertical spindle is with shaper device,it improves the cutter's life and keep the powerfulcutting high quality and also improve production efficiency.
7.All spindle diameter is Φ50,the max .Cutter diameter is 250mm,the rigidity is well,and the loading force is big.So it can keep the high quality.
8.The left and right vertical spindle is double workable,the scale of axial adjusting is to 80mm,you can install different cutter,improving the machining flexibility.
9.The moving workable is with 2 groups of floating driving roller,it matches with the top feeding roller,
making the cutting powerful.
10.All the feeding roller,pressure feeding device adopts pneumatic pressing,the pressure is adjustable and easy to operation.
11.The moving adjustable of each spindle adopt the automatic locking.it is interlock with the device.It is safe and easy to operation.
12.The feeding adjustment is done by export frequency inverter,The feeding speed can be 60m/min.
13.Human-computer interface and the plc system can well control the each motor's position.
14.The electric and manual pump lubricates the work table and transmission units with the flxed time,fixed quality
15.All the electric components and transmission from quality international brands,which keep the good stable and reliable performance.
| Specifications | Model |
| Mode and specifications | QMB623W |
| Max. working width mm | 230 |
| Min. working width mm | 20 |
| Max working thickness mm | 250 |
| Min working thickness mm | 20 |
| Spindle quantity | 6 |
| Spindle speed r/min | 6000 |
| Feed speed m/min | 10~36 |
| Spindle diameter mm | Φ50 |
| Cutter diameter first bottom cutter mm | Φ140 |
| Straightening cutter | Φ165 |
| Right vertical cutter mm | Φ140-Φ230 |
| Left vertical cutter mm | Φ140-Φ230 |
| First top cutter mm | Φ140-Φ230 |
| Second top cutter mm | Φ140-Φ230 |
| Motor power first bottom spindle | 11/15KW/HP |
| Right vertical cutter | 11/15KW/HP |
| Left vertical cutter | 11/15KW/HP |
| First top cutter | 15/20KW/HP |
| Second top cutter | 11/15KW/HP |
| Feed motor KW/HP | 11/15KW/HP |
| Beam elevation | 1.5/2 |
| Top spindle elevation KW/HP | 0.75/1 |
| Left vertical spindle horizontal movement KW/HP | 0.37/0.5 |
| Rear pressing plate elevation KW/HP | 0.37/0.5 |
| Total power KW/HP | 84/114 |
| Feeding wheel Dia. mm | Φ180xΦ35x50 |
| Suction hood Dia. Mm | 6-Φ180 |
| Overall dimensions mm | 60002280x2090 |
| Packing dimension | 58302300x2280 |
| Weight Kg | 9600 |
