| 電圧: | 220v | 原産地: | 中国(本土) | 銘柄: | の使命 | 条件: | 新しい | モデル番号: | u、 w、 h、 sprial | 重量: | 3キログラム | 力(W): | 5キロワット | タイプ: | 炉のヒーター | 動力源: | 電気 | 保証: | 6ヶ月 | 認証: | iso | 次元(L*W*H): | 180020x20mm | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | 温度: | 1500c、 1400c | 色: | グレー | 材料: | 炭化ケイ素 |
包装
| 包装: | bbxとpaded発泡ボード木材 |
Silicon carbide heating element Specifications
1. High working temperature: 1400C.
2. Long time last.
3. Varous type available. Rod, U, W, Single Spiral, Double Spiral

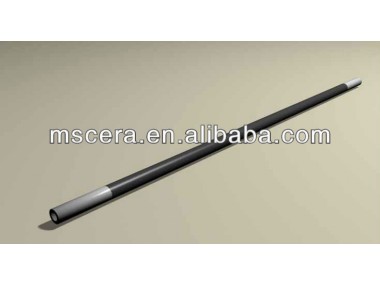

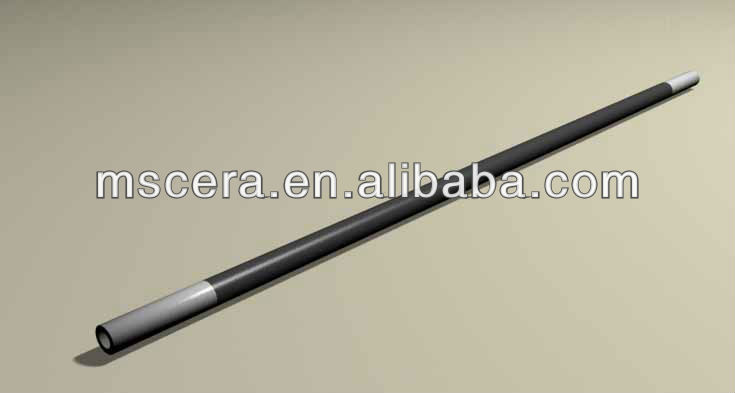

1500C Silicon carbide infrared heater rod is our main product.Mission can supply high quality Silicon Carbide (SiC) heating elements.
Advantage of Mission Silicon carbide SiC heating elements.
1. High working temperature: 1500C (Surface Temperature)
2. Various shapes: Rod, U, W, Single Spiral, Doule Spiral shapes are availible.
3. Large size range: Diameter 14-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
Standard Sizes of Mission SiC heating elements.
Diameter | Heating zone Length | Cold zone Length | Overall length | Range of resistance |
14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
How to Order Mission SiC heating element
1. Choose the shape you need, like Rod, U, W, Single Spiral etc.
2. Out Diameter (OD)
3. Heating Zone Lengh (HZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
Mission SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
I believe you will like our SIC heating elements.
Tips:
Customized production is available, for more information, please do not hesitate to tell me.
