| 電圧: | 380v | 原産地: | 中国(本土) | 適用: | 医学, 商品, 化学薬品, 食物 | ドライブの種類: | 空気 | 銘柄: | スーツパック | モデル番号: | Sp-490 | 重量: | 2000キロ | 自動等級: | 自動 | 包装タイプ: | ボール箱, フィルム | タイプ: | 真空包装マシン | 認証: | ce | 包装材料: | 木 | 条件: | 新しい | 次元(L*W*H): | 58501350x1900 | 力: | 13キロワット |
包装
| 包装: | 木箱の包装 |

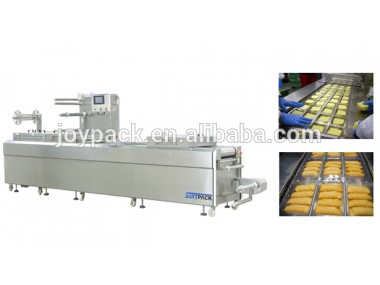

The machine is applicable for vacuum, gas and skin packaging of various food, meat, sea food, fruit, vegetable, medical and hardware items.
1, Power supply: 380V/AC 50HZ three phase + neutral line
2, Upper packing materials: heat-sealable films
3, Lower packing materials: thermo-formable, heat seal film, both rigid & flexible film is available
4, Gas displacement of vacuum pump: 180m3/hour (thermoforming: 80m3/h, sealing: 100m3/h)
5, Vacuum pump motor: 3.3kw (thermoforming: 1.1kw, sealing: 2.2kw)
6, Compressed air consumption: 1m3/min
7, Applicable gas pressure: 0.6Mpa
8, Cooling water: 4 liter/min
9, Maximum upper film width: 480mm
10, Maximum lower film width: 490mm
11, Practical film width: 450mm
12, Length per mould: 300mm
13, Maximum drawing depth: 80mm (thermoforming depth depends on thickness of lower film)
14, Packing capacity: 6 cycles/min
15, Control system: PLC programmable operation display
