電圧: | 380ボルト | 原産地: | 中国(本土) | 適用: | 飲料、ジュース | ドライブの種類: | 電気、空気圧 | 銘柄: | donglong | モデル番号: | CCS-2 | 重量: | 1500kgs | 自動等級: | 自動 | 包装タイプ: | スタンドポーチ | タイプ: | 蓋付け機 | 認証: | ce証明書 | 包装材料: | ポーチ付きキャップ | 条件: | 新しい | 次元(L*W*H): | 4100 × 1800 × 1800ミリメートル | 充填とキャッピング機: | スタンドポーチ充填とキャッピング機 | ポーチ充填とキャッピング機: | スタンドポーチ付きキャップ充填とキャッピング機 | タイプ: | 充填とキャッピング機 |
包装
包装: | 木製パッケージ |
Full Automatic Filling and Capping Machine

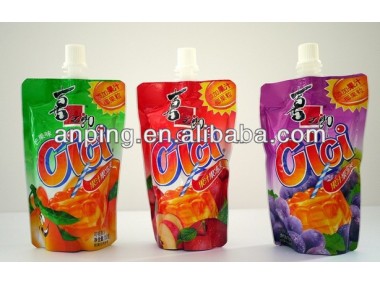

It is suitable for Filling and Capping of the stand-pouch-products as Jelly, Fruit-juice and Jam etc.
Key Features:
- Beautiful appearance, bright-looking, made of stainless steel, good health condition fit for producing foods.
- Full Automatically: by PLC Control system. The whole programs are Automatically done from pouches-feeding, filling, Nitrogen, cap-feeding, capping, checking, counting till the end.
- High Efficiency: Capacity: abt. 2000-3000pouches/hr (Twice pouches to filled each time)
- The machine has two filling heads, it is difficult to damage for and the effect is conducive pouch heads glitch.
- The machine has Vacuum & Nitrogen device, to keep foods fresh; shelf lift is one year. We has awarded patent of Vacuum and Nitrogen device.
- On the cap is tightened up and auto-detection, separation of non-confirming products will be automatically sent, and the product count system.
- The machine can be filled 80-90ºC, unnecessary sterilization.
- The machine has awarded ISO9001 & CE Certification.
Main Technical Parameters:
Power Supply | 3-phase 380V 50Hz |
Filling Volume | 500cc & 1000cc |
Filling Error | ±2% |
Air Comsuption | about 1500L/min (7kg/cm) |
Dimension | 4100×1800×1800mm |
Weight | 1500KGS |
Packaging & Shipping
Packing: Wooden-box
Delivery Time: Within 75days from the date of receipt 30% down payment of T/T or receive L/C
Port of Loading:Shantou Port
We will send technician to the buyer factory for installation,debugging & successful trial run. All related charges (round trip tickets charge, hotel, food, local transportation) should be paid by the buyer.
Company InformationWe are a leading manufacturer specialized in this field for more than 25 years,all of our clients speak highly of our machine quality level. Our factory is equipped with advanced integrated machine tools that enable us to produce high-quality, customized machines. We always strive to produce the most cost-effective and high-quality machinery to deliver total customer satisfaction. We export approximately 60 percent of our products to Southeast Asia, the Middle East, Africa and South America.
