    中国紙バッグ機メーカー-包装機械を形作る
    商品番号: 11204400
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380ボルト 原産地: 中国(本土) 銘柄: baofang
    モデル番号: AY-400 重量: 2500キログラム 自動等級: 自動
    力(W): 10kw 保証: 12ヶ月 条件: 新しい
    認証: ce、iso 使用法: 紙のフォーミングマシン 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため

    包装

    包装: 木箱





    1. Features:
    Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
    It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and Mcdonald's bags etc.

    2. Advantages:

    1)Suited for 40-80gsm paper.
    2)Controls bag length through the human-machine interface.
    3)PLC system for calculating parameters.
    4)Equipped with an accurate photocell system.

    5)Color mark error automatic alarming and stopping system

    6)Automatic oil lubrication system and Automatic counting system

    3.Technical Parameters:

    Paper Weight

          40-80g/m2

    Bag Length

          160-650mm

    Bag Width

          70-260mm

    The width of paper roll

          260-720mm

    Speed

          100-400pcs/min

    Total Power

          10kw

    Power Voltage

          380v,50/60 HZ, 3 phases

    Total Weight

          2500kg

    Machine Dimension(L*W*H)

          4000*2100*1900mm









































    4.Configuration Brand and details:

    Name and  Specification

          Quantity

    Brand of Country

    Servo Motor

          two sets

    Janpan

    PLC

          1pc

    Taiwan

    Touch Screen

          1pc

    Taiwan

    Photo-cell

          2 pcs

    Germany

    Web Edge Control(EPC)

          1pc

    China

    Frequency Converter(Inverter)

          1pc

    China

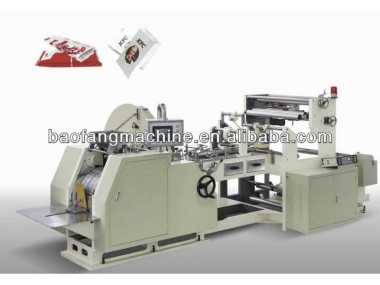

    machine in factory :
