Company Information

FBI Packing Co.,Ltd is specialized in manufacturing and exporting with wide range  of  stretch wrapping machines.

We are the world leading manufacturer of stretch wrapping machine.

We adopt PLC and frequency transducers control system for easy operation and reliable performance, requiring no maintenance.

Since establishment in 1994, FBI is making great progresses in the packing industry, with more expertise in the field of wrapping machine. Our products have been CE certificated with its reliable and stable quality.

Our experience and knowledge of packing machinery enable us to provide perfect solutions to meet specific packaging needs with different industries.

Don’t hesitate to contact us. Leave us a message and let’s find the solution.

Product Advantages

>> PLC controlled, easy wrapping program setting.

>> Both one touch automatic programs and manual run are available.

>> Film tension, turntable speed & carriage speed adjustable on panel.

>> Turntable stop start & stop.

>> Turntable home position.

>> Automatic detection of pallet height by photocell.

>> 250% power stretch, film savings.

>> Open type carriage for easy film threading.

>> Carriage driven by dual chain system.

>>Pre-set 9 programmable according the different cargo

>>turntable have the brake function

Product Description

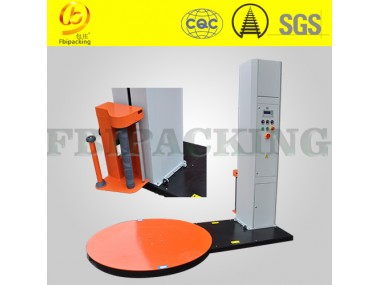

S-100H is a general purpose pallet wrapping machine with PLC control (programmable logic control), with main features below:

1) automatic / manual wrapping mode choices.

2) programmed with 5 groups of programs. User could set 9 groups of programs at most. Editable items for each group of program: overall cycles, top reinforcement wraps, bottom reinforcement wraps and over wrap. Text panel displays set value (SV) with performed value (PV).

3) PLC counts and displays total number of loads performed and rotations for present load.

4) installed with pre-stretch film head, pre-stretch ratio 250%. Film tension is variable through knob on human machine interface (HMI).

5) turntable speed and lifter speed is variable through knob on human interface. Turntable soft stop & soft stop.

6) machine home position.

7) column is hinged onto the turntable during transport for fast installation.

Product Specification

Trouble shooting

1 Machine can’t start

1) check if there’s power supply.

2) check if upper or lower limit switch is damage, or incorrectly connected.

3) Open electric box, check if fuse LED on. If yes, fuse is burned. Or a multi-meter could be used to check.

4) Check if all inverters work properly.

5) Check if PLC power indicator on and run indicator on.

2 Turntable can’t start

1) Open electric box, check if PLC output Y2 indicator on. If off, no PLC output.

2) Check if turntable inverter (0.75kw) works. Check if the turntable speed dial at its lowest speed. If yes, dial to a higher speed.

3) Check if the turntable driving chain got stuck or unchained. Unscrew the six bolts, and remove the turntable with care. Please note the turntable is heavy.

4) Judge of the load is over 2 tons, and loading position.

3 Film head lifter does not ascend

1) check if upper limit switch is damaged or incorrectly connected.

2) check lifter inverter (0.4kw, left one) works properly.

3) check on the panel if lifter speed dial knob at its lowest speed. Dial to a higher speed.

4) Check if lifter motor and chain work ok.

5) Check if PLC output Y6 indicator on. If off, there’s no PLC output.

4 Film head lifter does not descend

1) check if lower limit switch is damaged or incorrectly connected.

2) check lifter inverter (0.4kw, left one) works properly.

3) check on the panel if lifter speed dial knob at its lowest speed. Dial to a higher speed.

4) Check if lifter motor and chain work ok.

5) Check if PLC output Y7 indicator on. If off, there’s no PLC output.

5 No film feeding

1) check if the rollers in the film head is winded improperly by film.

2) check if the gate is closed.

3) Open upper cover, check if micro switch ok.

4) check if pre-stretch motor and chain work ok.

5) check pre-stretch inverter (0.4kw, right one) works properly.
