| 原産地: | 中国(本土) | 電圧: | 220v/380v | 適用: | フィルム | 銘柄: | フィート | モデル番号: | Ftpe1000-2000 | 自動等級: | 自動 | 重量: | 3000キログラム | 力(W): | kde6500e3 | 認証: | ce | 処理されるプラスチック: | PE | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | ねじ設計: | Single-screw | 条件: | 新しい | 次元(L*W*H): | ※4000*15002000mm | 製品タイプ: | 気泡フィルム | 処理タイプ: | 押出機 | 名: | 気泡フィルム袋製造機 |
包装
| 包装: | 輸出標準パッケージ |
1. PE bubble film making machine
Features:
1) Adopts shaping technique, with high efficiency and excellent
product quality
2) With scientific and reasonable structure design, smooth and reliable
running and convenient operation and maintenance
3) Polyethylene air-cushion film (also called polyethylene bubble film)
a) Including two kinds: ordinary polyethylene air-cushion film, composite
polyethylene air-cushion film
b) Not only has good cushioning effect, shock resistance and heat-sealing
performance, but also has such advantages as good corrosion resistance
and transparency
c) Widely used for packing household wares, post parcels, bicycles and
polyurethane furniture
2. Main Technical Variables:
Model | FTPE-1000 | FTPE-1200 | FTPE-1500 | FTPE-1800 |
Screw Diameter | φ60mm | Φ65mm | Φ75mm | φ90mm |
Film width | 1000mm | 1200mm | 1500mm | 1800mm |
Output | 60kg/h | 70kg/h | 90kg/h | 120kg/h |
Total Power | 50kw | 58kw | 70kw | 86kw |
Main motor | 15kw | 15kw | 18.5kw | 30kw |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |

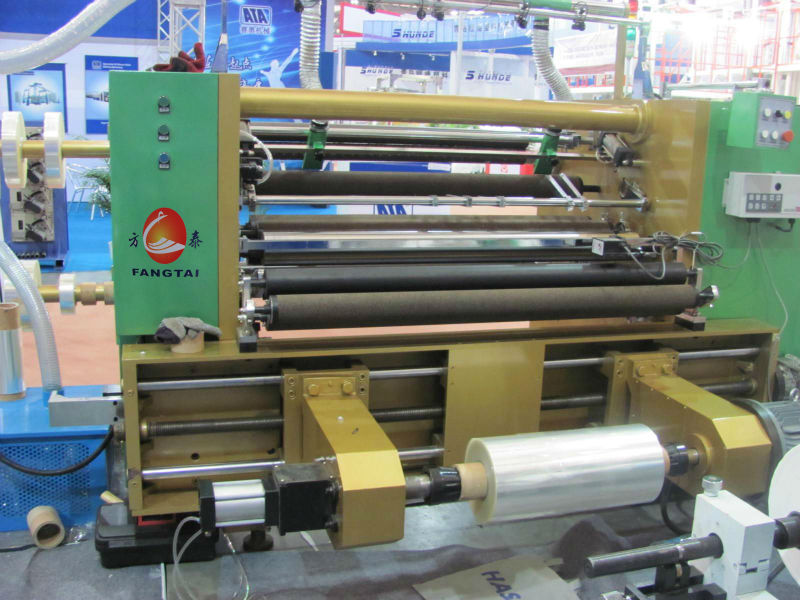

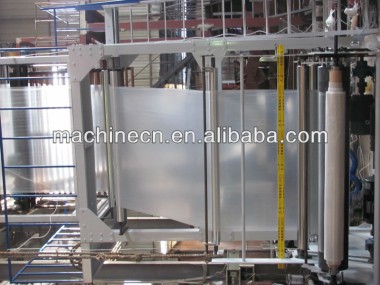

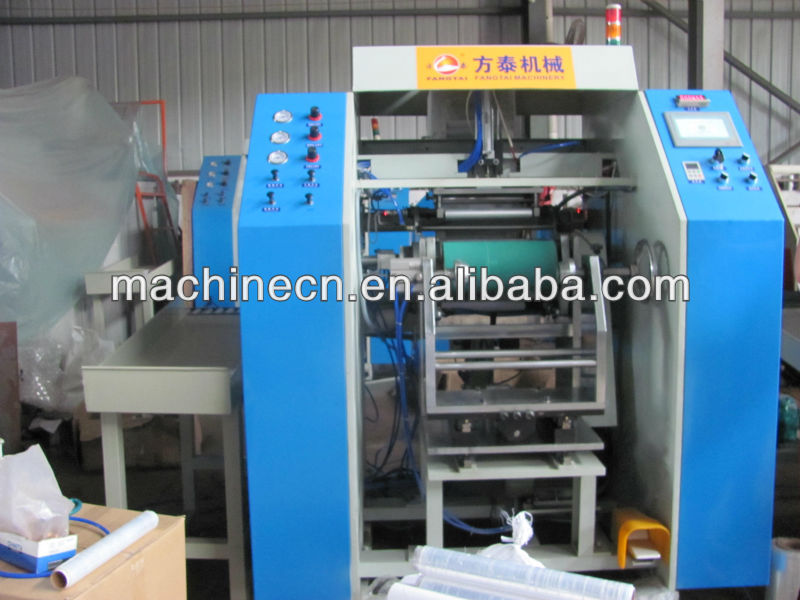

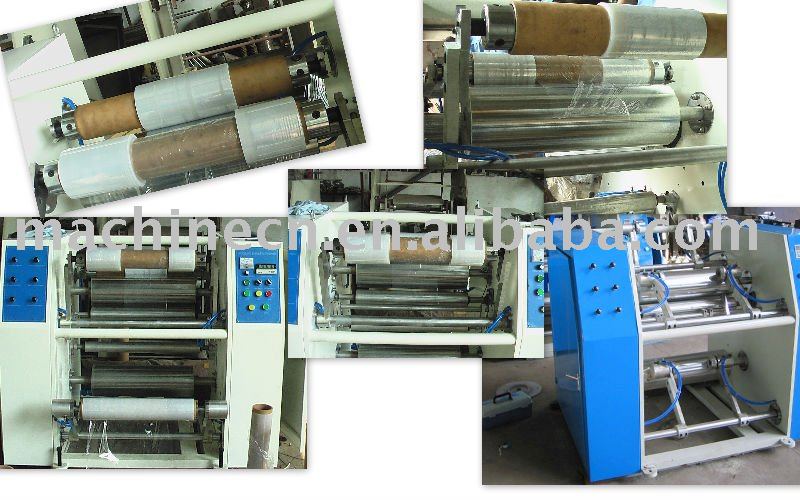

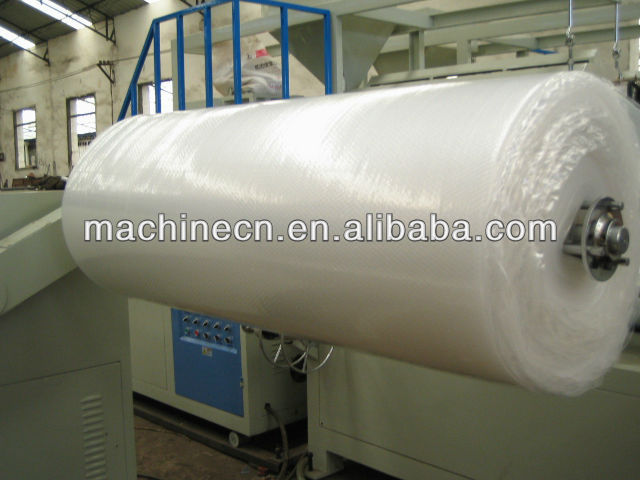

3. Pictures in workshop
