| 原産地: | 中国(本土) | 銘柄: | DG | モデル番号: | DH-YDJ-A | コンピュータ化される: | はい | タイプ: | ペーパー浮彫りになる機械 | 材料: | ステンレス鋼 | 証明書: | セリウム | 速度: | 120-200m/min | タイプ: | 自動 |
包装
| 包装: | 標準的な耐航性のある木の場合 |

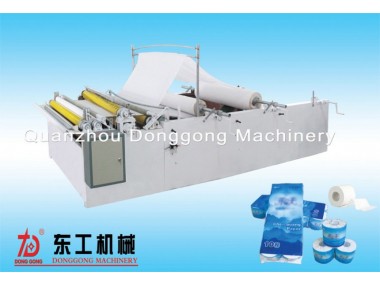

DH-YDJ-A double-side embossing toilet paper making machine
Function and feature:
1>this machine adopts advanced PLC technology,frequency speed controlling,and touch button multimenu type LCD screen operation control panel.
2>Automatic paper loading,pneumatic paper loading to lighten manpower’s labour intensity,and pneumatically wide belt paper unwinding driving,individual papers’ tension control device for each jumbo roll.
3>Double-side embossing,make paper softer,accordant finished product effect,lessen finished product weight.
4>Finish full automatic border-repair,make glue and seal with only one step,it is convenient to use by leaving finished paper with tail.
5>Full automatic paper core replaced,finished rewinding products automatic extrusion,coreless device (products without paper core)
6>Operation becomes easier by rolling finished paper in pulling-up way,and pulling raw paper by controlling the front and back switch.
7>It can be equipped with 1-4colors printing device according to user’s demand.
Model | 1092 1575 2500 2800 |
Parent roll width | 1350 1800 2500 2800mm |
Parent roll | Dia. 1200mm (can be customized) |
Parent roll core | 3’(dia. 76mm) (can be customized) |
Loading stand | Two (can be customized) |
Product size | Dia. 60-200mm (adjustable) |
Perforating pitch | 90-165mm (adjustable) |
Products core | Dia. 35-55mm (adjustable) |
Controlling system | PLC controlling, frequency speed controlling and LCD touch screen display,electric-eye inspecting |
Tension controlling system | Cone pulley manualn adjusting |
Trimming/tail-gluing device | Intermission stop.inside automatic trimming and tail-gluing |
Capacity speed | 120-200m/min(speed different according to different parent roll) |
Electronic supply | AC380V 50/60Hz |
Power | 5.5KW-11KW |
Air pressure | 0.6Mpa(prepared by the purchaser) |
Machine size | 52002200x1800-52003800x1800mm(LxWxH) |
Machine weight | 1500-4000KG |
final products:
