| 電圧: | 380v/50hz/3ph | 原産地: | 中国(本土) | 銘柄: | zhisheng | 条件: | 新しい | モデル番号: | Zs-fl-1540 | 重量: | 350kg | 力(W): | 1100ワット | 保証: | 1年 | 認証: | iso9001 | 次元(L*W*H): | 14001200x2050 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 材料: | パウダーコーティングされた冷間圧延されたシートプレート | 適している: | 一人 | 吹く側: | 両サイド | クリーンルーム: | 100クラス | 風速: | 22-25m/s | 電圧: | 380v/50hz/3ph |
包装
| 包装: | 合板パレットやケース |

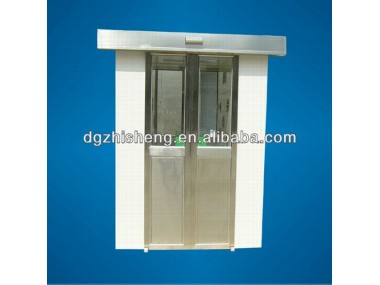

Automatic door air shower
Description:
Clean room Air Shower is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Material:
Outside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Inside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Doors: SUS#201,SUS#304 or aluminum alloy
base: SUS#201 or 304
Nozzles:SUS#304
Features:
1. The control system run automatically, the two doors electronically interlocked, with photoelectric sensor
(One door in open state, the other door must in close state. When people enter air shower, the system will shower automatically by photoelectric sensor)
2. Air shower time from 0 to 99 seconds which can be adjustable
3. Pre filter and HEPA filter
Control system:
LCD control panel, electronic interlock and automatic blowing by photoelectronic sensor.
Optional accessor
1.Manul swing door or automatic sliding door
2.HEPA filter or ULPA filter
3. The case is used of cold-rolled steel plate / all stainless steel air shower / just stainless steel inside
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
6. Omron or Mitsubishi PLC control system
Standar size and specificaton:
Model
| Air shower | Cargo Air shower | |||||
ZS-FL-1300 | ZS-FL-1540A | ZS-FL-1540 | ZS-FL-1540-1D | ZS-FL-2000 (2D) | ZS-FL-2300- (5D) | ||
External dimensions (mm) | 1150800x 2050 | 14001000x 2050 | 14001200x 2050 | 14001600x 2050 | 18002000x2050 | 21005000x 2050 | |
Dimensions in WxHxD(mm) | 800750x 1920 | 800950x 1920 | 8001150x 1920 | 8001550x 1920 | 12001950x 1920 | 15004950x 1920 | |
Material for case | Cold rolled steel with powder coated , SUS#201 or SUS#304 | ||||||
Suitable person | 1 | 1 | 1-2 | 2-3 | Cart | ||
Nozzles | 6(one side) | 12(two sides) | 16(two sides) | 18(two sides) | 24(two sides) | 60(two sides) | |
Blow power(W) | 550 | 1100 | 1500 | 2000 | 2200 | 7500 | |
Weight(kg) | Appro.250 | Appro.400 | Appro.600 | Appro.900 | Appro.1200 | Appro.2800 | |
HEPA filter’s dimensions | 550610x69 One piece | 610610x69 two piece | 610610x69 two piece | 610610x69 two pieces | 610610x69 four pieces | 610610x69 Ten pieces | |
Nozzle diameter | 32mm | ||||||
Air shower time | 0~99s Adjustable | ||||||
Spurt wind speed | 20~25m/s | ||||||
Voltage | 380V/50Hz/3Ph; 220V/50Hz/1Ph | ||||||
hepa Filter efficiency | Above 99.99% efficient on 0.3um particles | ||||||
Control system | LCD control panel, electronic interlock and automatic blowing | ||||||
