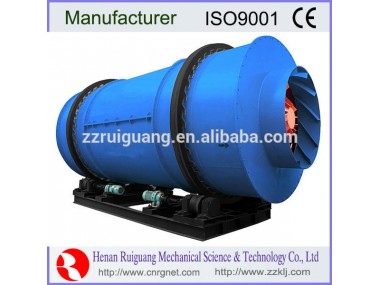

• トリプル-ドラム乾燥機-円筒乾燥装置
    商品番号: 11156675
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380ボルト 原産地: 中国(本土) 銘柄: ruiguang
    条件: 新しい モデル番号: rua 重量: 必要に応じて
    力(W): 106kw タイプ: 円筒乾燥装置 保証: 1年
    認証: ce/ios 次元(L*W*H): 必要に応じて 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため
    色: 必要に応じて を訪問: いつでも訪問する

    包装

    包装: 標準梱包

    1. Product introduction

    The three-cylinder dryer in wet material drying equipment series products, the three rotary drum dryer is based on the single tube rotary dryer improvement of high efficiency and energy saving products.The companies, the application of multiple industries, has obtained the good effect.Three drum dryer to improve the original single drum dryer rotary internal structure, increase the wet material into the machine before prebake and prolong the drying time of the wet material in the machine, plus the sealing, thermal insulation and reasonable supporting measures, make the dryer production capacity compared with the original single drum dryer, 50-80%, unit volume evaporation intensity of up to 120-180 kg/m3, the standard coal consumption for 6 to 8 kg/t only.

    2.Working principle of the

    Material from the feed device to the lining of the rotary drum, realize the downstream drying, material inner constantly grabbed, scattered under the copy board of a spiral rolling realize heat exchange, move to the other side of the lining material into the middle, counterflow drying, material in the middle are constantly repeated Yang, is marching into two steps forward and one back, material in the middle is fully absorb heat coming from the inner cylinder, and absorb the middle roller heat and prolong the drying time again at the same time, dry material in the best condition

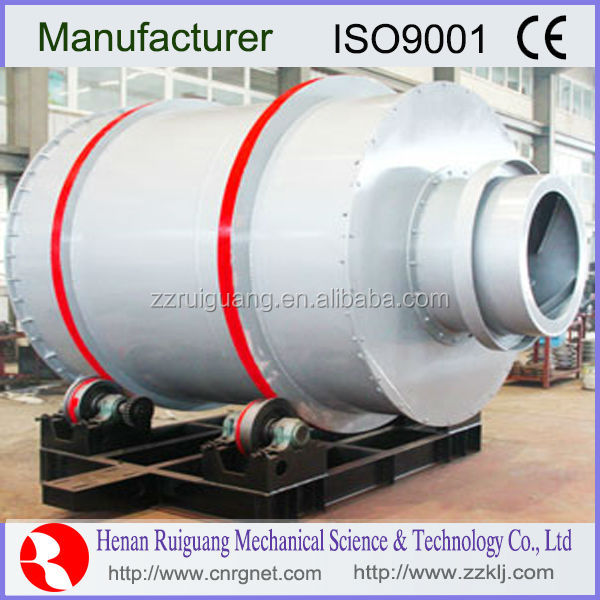

    トリプル-ドラム乾燥機

      3. The main characteristics

    1, the equipment investment is needed for 1/6 of the imported products.
    2, material moisture to ensure below 0.5%, dry mortar and slag powder production line is the preferred product.
    More than 3, barrel self insulation thermal efficiency is as high as 70% (traditional single drum dryer heat efficiency is only 35%), improve the thermal efficiency is 35%.

    4. The main technical parameters



    specifications

    FBφ2.0×4

    FBφ2.5×5

    FBφ3.0×6

    FBφ3.6×8

    The diameter of(mm)

    2000

    2500

    3000

    3600

    The length of the(m)

    4

    5

    6

    8

    volume(m)

    12. 6

    24.5

    42.4

    81.4

    Copy plate form

    Spiral pusher

    Fill rates

    10-20%

    The material

    Heat-resistant steel, stainless steel

    The use of temperature

    ≤700C°

    The intensity of evaporation

    20-80Kg water /m.h

    Heating mode

    Downstream, direct heat transfer

    The heat source

    Coal, oil, electricity, gas, biofuels

    speed

    4-10 r/min

    Transmission power

    5.5 Kw

    11 Kw

    15 Kw

    22 Kw

    Form a complete set of equipment

    Transportation equipment, equipment for hot blast stove, separation, dust removal equipment, induced draft fan, etc



    Specification (diameter * length)

    Φ2.8m*12m(Three layers

    Φ3.2m*12m(Three layers)

    Φ4m*12m(Three layers)

    Production (ton/day)

    500

    700

    1000

    Total power (kw)

    106

    130

    180

    Area

    7m*35m

    8m*40m

    8m*45m
