| 原産地: | 中国(本土) | 銘柄: | lutong | モデル番号: | PY180C | 重量: | 16000キログラム | 条件: | 新しい | 認証: | iso、ce | 次元(L*W*H): | 8585*2790*3340ミリメートル | 逆の速度(km/h): | 24.5 | 前方速度(km/h): | 38.2 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | ヌードパッキング |

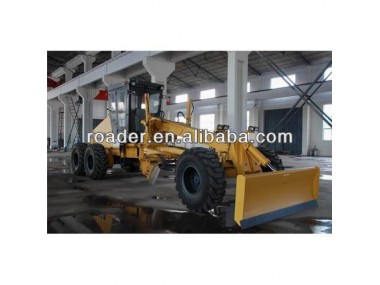

Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping,bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi-functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
<
| Motor Grader Model | PY180C | |
| Diesel Engine | ||
| Diesel model | / | CUMMINS 6BTA5.9 |
| Rated power | KW | 132 |
| Weight | ||
| Operating mass | kg | 16000 |
| Front axle load | kg | 5150 |
| Rear axle load | kg | 10850 |
| Transmission system | ||
| Min. turning radius | mm | 7800 |
| Max. forward speed | Km/h | 38.2 |
| Max. backward speed | Km/h | 24.5 |
| Speed gear number | / | F6/R3 |
| Machine parameters | ||
| Wheelbase | mm | 6362 |
| Front wheel track | mm | 2150 |
| Rear wheel track | mm | 2340 |
| Hydraulic system pressure | Mpa | 18 |
| Max. grade ability | ° | 30 |
| Overall dimension | mm | 8585×2790×3340 |
| Tire | ||
| Wheel rim | / | 14.00/1.5-25(TB) |
| 6 tire size | / | 17.5-25 PR14 |
| Front dozer | ||
| Dozer width | mm | 2730 |
| Dozer height | mm | 930 |
| Rear mounted ripper | ||
| Number of teech | / | 5 |
| Maximum penetration of tooth | mm | ≥340 |
| Blade | ||
| Blade length×height | mm | 3965×610 |
| Rotating angle of blade | ° | 360° |
| Max tilting angle of blade | ° | 90° |
| Maximum grading depth | mm | 550 |
| Maximum lifting height | mm | 450 |
| Wheel drive formula | / | rear axle 4WD drive |
| Steering: Hydraulic | ||
| Steering angle | ° | 45° |
| Level pendulum angle | ° | ±15° |
| Front-wheel tilting angle | ° | ±17° |
| Articulated frame steering angle | / | 25°(left & right) |
| Fuel tank | L | 228 |
| Hydraulic oil tank | L | 170 |
| Working attitude | m | 4000 |
| Working temperature | ° | -30°---50° |
ship by containery 40HC, in disassemble structure.

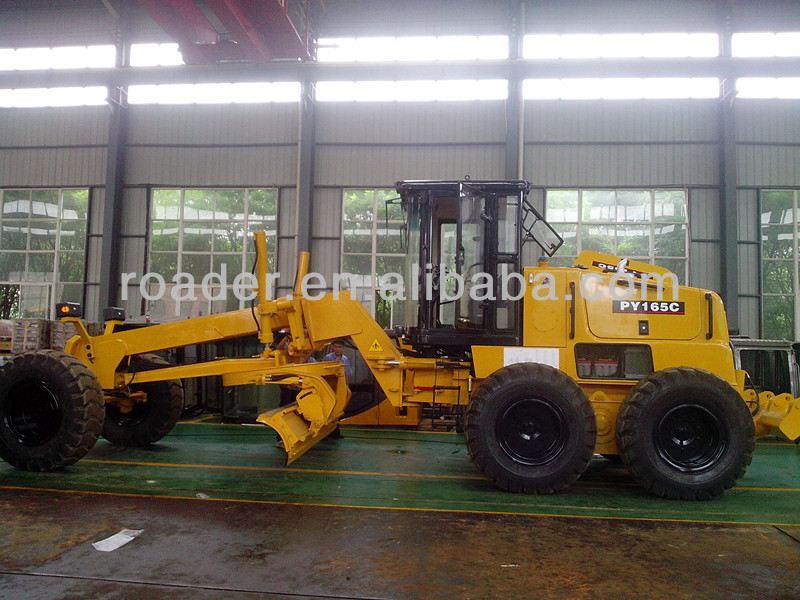

PHOTOS:
