| 力: | 油圧 | 原産地: | 中国(本土) | 銘柄: | colego | モデル番号: | Xuzw- 5 | 原料: | 管 | 機械タイプ: | 管および管の曲がる機械 | オートメーション: | 自動 | 認証: | iso9001 | 処理される材料/金属: | 銅/薄型- 壁a- 合金パイプ | 認証: | iso9001 |
包装
| 包装: | 木製ケース |

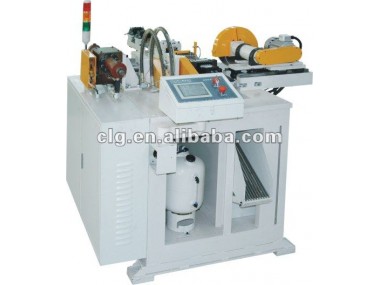

Return "U"-shaped bending machine is suitable for copper or thin-wall a-alloy pipe to straighten, cut and bend the pipe into "U" shape.
High efficiency: It is used with preumatic clmping to feed. The feeding is precision. It is used with high-speed saw to cut off copper tube It is also used with hydraulic motor to drve to bend. The angle of bending is precision and the run of the equipment is stable
Easy operation: It is used with PLC to cntrol and also used with touching screen to set parameter automatically. The program is very easy and you ca oly use one seitch to complete the whole opeeration.
Dependable property: The whole machine is used with import components and te protecting function is perfect.
Good adaptablity: Different beding dies can be changed to meet various requirements.
Maine technical specification:
Model | XUZW-5 |
Specification of copper tube | φ7(wall thickness 0.25-0.5mm) |
φ9.52(wall thickness 0.25-0.5mm) | |
Center distance of bending | φ7 (15.88-22mm) |
φ9.52 (19.05-25.4mm) | |
Number of copper tube | 3-5 radix |
Bending speed | ≤ 7s (per cycle ) |
Precision of center distance of U shape | ± 0.1mm |
Ellipticity of bending part | ‹ 15% |
Reducing rate of wall of bending part | ‹ 35% |
Model of control | Manual , jog , automatic |
Work voltage | AC380V |
Air pressure rate | 0.3-0.5 Mpa |
