| 電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | 永遠の | モデル番号: | jw | 重量: | 600トン | 力(W): | 15~230kw | CNCまたはない: | 正常 | 保証: | 到着後一年のお客様のサイト | 条件: | 新しい | 次元(L*W*H): | 必要に応じて | 動力源: | 油圧 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | 耐航性のある輸出パッキング |

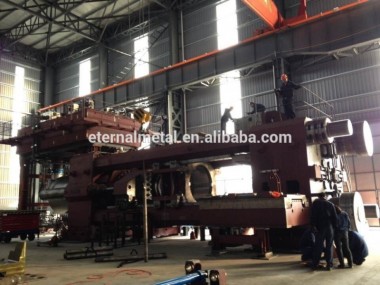

Our company could design and manufacture a series of metal extrusion press according to European model and
Japan model , these extrusion press could be applicated in the following fields :
Extrusion press Application :
1. construction aluminium profile ( aluminium door , alumininum windown )
2. Transportation equipment , such as airplane alumininum profile , high speed train alumininum profile , automobile car ,
3. Power transmission wire etc .
1. According to extruding raw material , it could be devided into :
A , Aluminium profile extrusion press , B Copper extrusion press C Iron and steel extrusion press
D . Ti alloy extrusion press E . Mg alloy extrusion press
2. According to its extrusion mode , it could be devided into
A Direct extrusion press and indirect extrusion press
B Single action and double action extrusion press
Extrusion press Main specification :
1. Stress calculation with ANALYSIS software
2. Pump direct driveing and save power consumption
3. Enough pressure and strength on extrusion body
4.Main ram cylinder choose forging material , long lifetime and less leakage .
5. Adopt Siemens PLC control system ,
6. reserve enough communication interface
Extrusion press Main specifiation
| Model | Working pressure | Piston Dia. | Specification of Main and Auxiliary Cylinders Dia. | Specification of used billet Dia. | Center height of Press | Dia. of discharge gate | Total Power |
| (MPa) | (mm) | (mm) | (mm) | (mm) | (mm) | (kW) | |
| 638T(700UST) | 21 | Ø580 | Ø160/Ø120 | 90*470 | 870 | Ø120 | 95 |
| 800T(880UST) | 21 | Ø650 | Ø180/Ø140 | 110*520 | 1030 | Ø160 | 167 |
| 1000T(1100UST) | 21 | Ø730 | Ø200/Ø150 | 127*580 | 1080 | Ø160 | 167 |
| 1000TShort Stroke Press | 28 | Ø650 | Ø140/Ø100 | 127*580 | 1055 | Ø160 | 217 |
| 1400T(1540UST) | 21 | Ø870 | Ø220/Ø160 | 152*700 | 1195 | Ø180Ø220 | 250 |
| 1400TShort Stroke Press | 28 | Ø770 | Ø160/Ø120 | 152*700 | 1225 | Ø180Ø220 | 364 |
| 1650T(1800UST) | 21 | Ø950 | Ø220/Ø160 | 178*700 | 1320 | Ø210Ø250 | 322 |
| 1800T(2000UST) | 21 | Ø980 | Ø250/Ø180 | 178*750 | 1320 | Ø210Ø250 | 464 |
| 1800T(2000UST)Short Stroke Press | 28 | Ø870 | Ø180/Ø140 | 178*750 | 1355 | Ø210Ø250 | 515 |
| 2000T(2200UST) | 21 | Ø1050 | Ø250/Ø180 | 203*850 | 1530 | Ø280Ø320 | 440 |
| 2000T(2200UST)Short Stroke Press | 28 | Ø920 | Ø200/Ø140 | 203*850 | 1530 | Ø280Ø320 | 595 |
| 2500T(2750UST) | 21 | Ø1180 | Ø250/Ø180 | 228*1000 | 1860 | Ø310Ø380 | 671 |
| 2500T(2750UST)Short Stroke Press | 28 | Ø1020 | Ø220/Ø160 | 228*1000 | 1425 | Ø310Ø380 | 745 |
| 3000T(3300UST) | 21 | Ø1295 | Ø280/Ø190 | 254*1100 | 1945 | Ø330Ø410 | 783 |
| 3000T(3300UST)Short Stroke Press | 28 | Ø1120 | Ø250/Ø180 | 254*1000 | 1740 | Ø330Ø410 | 871 |
| 3600T(4000UST) | 21 | Ø1420 | Ø300/Ø220 | 304*1100 | 2010 | Ø390Ø450 | 913 |
| 3600T(4000UST)Short Stroke Press | 28 | Ø1230 | Ø280/Ø200 | 304*1100 | 1950 | Ø390Ø450 | 1145 |
| 4500T(5000UST)Short Stroke Press | 28 | Ø1370 | Ø300/Ø200 | 355*1300 | 1950 | Ø400Ø500 | 1280 |
| 5500T(6000UST)Short Stroke Press | 28 | Ø1520 | Ø320/Ø220 | 381*1500 | 2000 | Ø420Ø550 | 1734 |
| 7500T(8250UST)Short Stroke Press | 28 | Ø1740 | Ø450/Ø320 | 432*1550 | 2300 | Ø500Ø750 | 2300 |
| 8000T(9000UST)Short Stroke Press | 28 | Ø1780 | Ø480/Ø340 | 483*1600 | 2400 | Ø550Ø850 | 2800 |
| | |||||||
