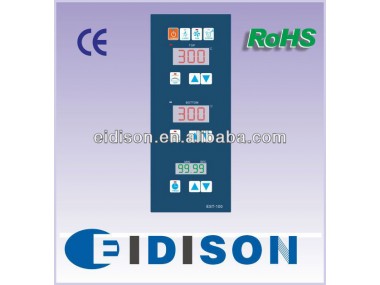

EST-100 Bakery Oven Controller
EST-100 series food oven panel controller use high quality micro process(MCU) technology,the system is good in precision control, conveniently data store, simple operating, two temperature PID control, Time count down, with Steam, Light and Fan control. Possessing of well-equipped function for choice, EST-100 can satisfy users' demand in best.
System Character
LED and indicator display work and alarm state
Top temperature relay output
Bottom temperature relay output
Light relay output
Alarm relay output
Steam valve relay output
2 K or J thermocouple inputs
1 door switch input
1 backup input
PID adjust, fuzzy control
Temperature display range:0~400°C or 0~500°C
Temperature control range:0~300°C or 0~400°C
Bake time range: 0~60m
Steam time range: 0~99s
Light time auto-off range: 0~9.9m
Multi password protect setting
Temperature devation correction
Temperature of upper limit deviation setting
Heating overshootsetting
Upper temperature limited alarm
Maximum temperature limited alarm
Thermocouple open circuit alarm
Working Environment
Power supply: 50~60Hz AC220V±10%
Environment temperature: 0~50°C
Environment humidity: less than 85%RH
Working condition: non-corrosiveness gas, far away from strong magnetism
Outline size: 320mm×130mm
Fix screw: 310mm×120mm
