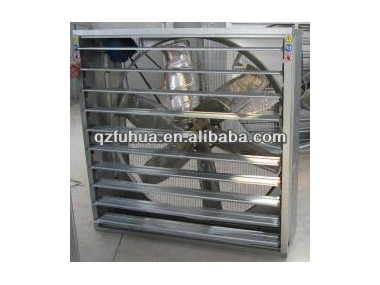

    で、 特別!!! 福華最新シャッター排気ファンをマウント-遠心ファン
    商品番号: 11016537
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380v 原産地: 中国(本土) 銘柄: 福華
    土台: 壁ファン モデル番号: Fch-b 速度: 1400r/m
    刃材料: ステンレス タイプ: 遠心ファン 認証: CE
    力: 750w 電流のタイプ: AC 空気容積: 35000m³/h
    色: グレー 認証: ce ブランド: 福華
    ブレード材料: ステンレス鋼 風量: 35000 速度: 560
    電圧: 380 外枠の罫線: 亜鉛鉄板 ハブ: アルミ合金
    ベルト: 瓦房店市

    包装

    包装: 標準的な輸出パッキング



       It has adopted advanced technology with high accuracy; it has a special thick galvanized layer-strong corrosion resistant, with approptiate angel and maximum ventilation;microcomputer system can give full play to the blower. It takes five strict quality test with CAD design.



       Six strong impeller, aluminium alloy, light weight, high  intensity, good toughness,

    Having automic tightening structure, the belt won't loose or drop



        adopting Shandong exported 380V three-proof motor dynamic for guarantee

         imported bearing from France with high intensity, low noise and long service life


    Main technical parameters

    model & specificationsdiameter of blade
    (mm)
    blade speed
    (r/min)
    input air
    (m3/min)
    total pressure
    (pa)
    noise
    (db)
      voltage rating
    (v)
    motor speed
    (r/min)
    installed dimensions
    length×width×thickness(mm)
    9FHB-71071056029555≤700.373801350810×810×350
    9FHB-90090056044560≤70

    0.55

    38013501000×1000×350
    9FHB-1000100056054062≤700.7538013501100×1100×350
    9FHB-1250125043072055≤701.138013501380×1380×400
    9FHB-14001400390100060≤701.538013501550×1550×400
