| 原産地: | 中国(本土) | 銘柄: | ZYWE | 条件: | 新しい | モデル番号: | CT-312 | 次元: | 245*360*535 | 型式番号: | CT-312 | 次元: | 245*360*535 | 色: | 赤い | 純重量: | 9つのkg | 総重量: | 13kg |
包装
| 包装: | バイヤーの条件による標準的な輸出パッケージまたは |

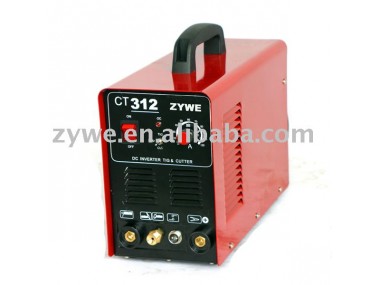

INVERTER PLASMA WELDING MACHINE
CT-312
Features:
1.New type and efficiency
2.One machine has three purposes:TIG, MMA and cutting
3.Operation is more convenient.
4.High performanceprice ratio
Specifications:
1.Power supply:single-phase:110/220V±15%, 50/50Hz
2.Capacity:4.2KVA
3.No-load loss:40W
4.Duty cycle:50%
Function: TIG MMA CUT
5.Input current 10.2A 15.6A 19A
6.Rated output current:120A 110A 30A
7.Current range 10-120A 10-110A 15-30A
8.No-load voltage 55V 55V 220V
9.Working voltage 15V 25V 110V
10.Gas flow 2.5L/Min --- 0.4MPA
11.ARC-loading HF --- HF
12.Dimension(mm): 245×360×535
13.Net weight(kg): 9
14.Gross weight(kg): 13
