| 原産地: | 中国(本土) | 銘柄: | ジョイント | 適用: | フライス盤 | 条件: | 新しい | モデル番号: | VMC-540L3 | 重量: | 3800KGS | 認証: | ce | 次元(L*W*H): | 2200*2300*2200 | スピンドル回転速度:: | 8000/10000/12000/15000 rpm | 切削送り: | 10メートル/分 | ミン。セット移動ユニット: | 0.001ミリメートル | 電力(ワット): | 5.5kw | 色: | オプション | 電圧: | 220ボルト/380ボルト/415ボルト | 精密: | 高 |
包装
| 包装: | 木製のパッケージ |
Specifications
Leaner way with small friction embodies quick response
Machine parts are world famous brand
High quality and rigidity
Detailed Product Description
1.Table travel 560*410*450mm
2.Rapid feed 24*24*24m/min
3.Max.loaded of table 300kgs
4.OEM manufacturer
5.CE certificate
Features:
1. Mehanite casting,computer analysis facilities are used in its manufacturing,
wide distance slide way makes outstanding rigidity.
2.Pre-pressed and pre-tense double screw assures feeding high accuracy.
Special design of slide way and auto lubrication system ensures the accuracy
long-time of the machine.
3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly.
4.X,Y axis are assembled with linear way, Linear device is closely fixed on the cast
Who has the features of small touch area,small friction;hence each machine embodies
Quickly response,good dynamic performance,fast feed rate,and high positioning accuracy.

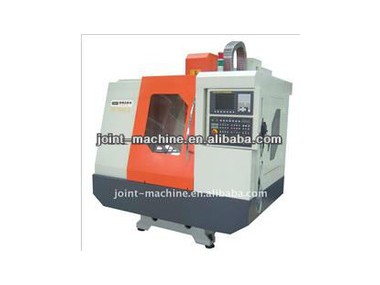

Specification:Vertical machine center VMC-540L3
| Model | VMC-540L3 |
| Table size | 700*420mm |
| Table travel | 560*410*450mm |
| Distance between spindle and table | 110-560mm |
| Distance between spindle and column | 453mm |
| Spindle rotation speed | 8000/10000/12000/15000rpm |
| Spindle taper | BT40 |
| Spindle motor | 5.5kw |
| Rapid feed | 24*24*24m/min |
| Cutting feed | 10m/min |
| Positioning accuracy | 0.008mm/m |
| Min Enactment move unit | 0.001mm |
| Dimension(L*W*H) | 2200*2300*2200mm |
| Net weight | 3800kgs |
| Max.Loaded of table | 300kgs |
Accessories:
1.Standard accessoires:
Control system
Electronic hand wheel
Cover
Auto lubrication of slide way
Coolant system
Operation manual of machine
Operation manual of control system
Cutting fluid and filter system
Stainless steel covers of slide way
Alarming light
Hammer balance
Tool and toolbox
2.Optional accessories:
Milling chuck and tool unlock
Arm type or umbrella type tool magazine
Auto chip conveyor
Oil coolant
The fourth axis NC dividing head or rotary table
Heat exchanger
After-sales services:
Warranty is one year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photo:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
