| 電圧: | 220ボルト | 原産地: | 中国(本土) | 銘柄: | jiazhao | モデル番号: | jz | 重量: | 300キログラム | 次元: | 1*1.2*1700 | 使用法: | 超音波/超音波プラスチック溶接機用プラスチック溶接機 | 頻度: | 20 Khz | 力: | 0〜4200ワット | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 溶接区域: | 0〜300ミリメートル直径 | アイテム: | 超音波/超音波溶接機用pp pc abs pvcプラスチック溶接機 | モデル: | JZ-2018A | 出力電力: | 1800ワット | 外形寸法: | ホストサイズ: 700*400*1300ケースサイズ: 600*440*160 | 空気圧: | 圧力範囲: 1に7バー |
包装
| 包装: | 海匠木製ケース用超音波/超音波プラスチック溶接機用pp pc abs pvcプラスチック溶接機 |
Product Description

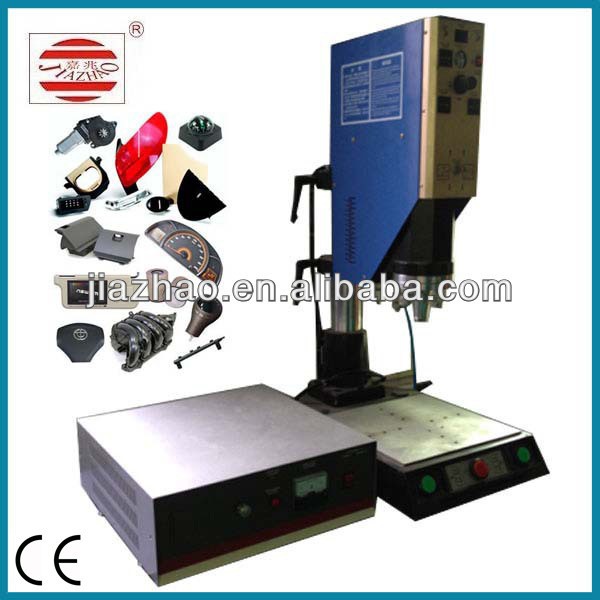

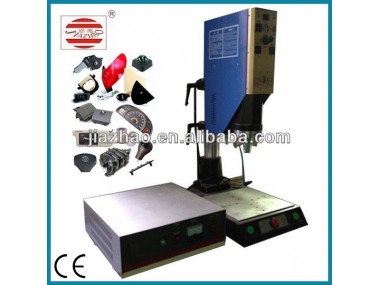

Ultrasound/Ultrasonic Plastic Welding Machine for PP PC ABS PVC Plastic Welder
1. Ultrasound/Ultrasonic Plastic Welding Machine for PP PC ABS PVC Plastic Welder main Features:
Japanese original piezoelectric ceramic transducer, strong stability for output, Titanium alloy amplitude transformer, durable, Square column, guide bearing, precision fine-tuning, Adjustable base plate structure, convenient debugging moulds, fission type structure, to avoid interference. All import parts with high quality components, quality assurance.
2. Ultrasound/Ultrasonic Plastic Welding Machine for PP PC ABS PVC Plastic Welder main usage area:
Used for toys, electronic, plastic bags and small rubber pieces of welding and forming. Ultrasonic Welding designed for ABS/PE/PC/PS/PVC/PP material Ultrasonic welding; ABS-PC complex welding, acrylic Ultrasonic welding.
3. Ultrasound/Ultrasonic Plastic Welding Machine for PP PC ABS PVC Plastic Welder Specification:
Model | JZ-2009A-P | JZ-2012A-P | JZ-2015A-P | JZ-2018A-P | JZ-2020A-P |
Output power | 900W | 1200W | 1500W | 1800W | 2000W |
Frequency | 20KHz | ||||
Input voltage | (single phase)220V | ||||
Max input power | 1.5KW | 1.7KW | 1.9KW | 2.0KW | 2.3KW |
Head route of travel | 80MM | ||||
Oscillation system | Line | ||||
Output time | "Fuji" time control 0.01-6s | ||||
Current instructions | Output collector current indication | ||||
Air pressure | Pressure range:1 to 7 bar | ||||
Vibration head cooling system | air cooling | ||||
Welding area (mm) | φ80 | φ100 | φ150 | φ170 | φ190 |
Use compressor | 2HP | 3HP | |||
Dimension | Host size: 700 * 400 * 1300 Case size: 600 * 440 * 160 | ||||
Net weight | 110kg | 115kg | 121kg | 123kg | 128kg |
Model | JZ-1526A(-P) | JZ-1542A(-P) | |
Output power | 2600W | 4200W | |
Frequency | 15KHz | ||
Input voltage | (single phase)220V | ||
Max input power | 2.8KW | 4.5KW | |
Head route of travel | 100MM | ||
Oscillation system | Line | ||
Output time | "Fuji" time control 0.01-9.99s | ||
Current instructions | Output collector current indication | ||
Air pressure | Pressure range:1 to 7 bar | ||
Vibration head cooling system | air cooling | ||
Welding area (mm) | Φ190 | Φ300 | |
Use compressor | 2-3HP |
| |
Dimension | Host size: 700 * 400 * 1300mm | Host size: 975 * 900 * 2100mm | |
Net weight | 150kg | 300kg | |
4. Ultrasound/Ultrasonic Plastic Welding Machine for PP PC ABS PVC Plastic Welder usage and molds
