| 原産地: | 中国(本土) | 銘柄: | clw | 重量: | 17370 キログラム | 条件: | 新しい | 次元(L*W*H): | 10200*2500*3563 ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | ワックス 8 cbm同期チップ シーラー 、同期チップ スプレッダー |
Application:

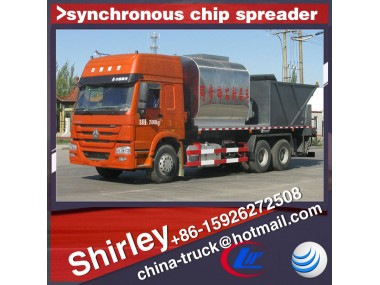

synchronous chip sealer
the sealing layer under the road surface construction, new and old pavement overlay on wearing layer construction, the asphalt surface layer spread construction,
asphalt & macadam respectively spilled out of the special circumstances, etc.
advantage:
synchronous chip sealer
1, the same place for asphalt and chip landing time interval of not more than 1 second, greatly improve their caking ability;
2, asphalt tank and stone warehouse loading in the same chassis, reduces the cost;
3, fully automatic computer control;
4, the work of advancing direction and increase the safety of construction, the harm to the body greatly reduced, minimize the environmental impact .
| Main part list: | ||||||
| Bitumen pump | QGB950 (Zhejiang China, bitumen pump hydraulic drive motor 05-130-BD31 | |||||
| Hydraulic system | proportional valve(taiwan EFBG-03-160-HF) reversing valve & overflow valve(shanxi china) Hydraulic pump 50-20-16 | |||||
| Control type | control syestem (siemens CLW-32-012),computer control one by one,32 pcs intelligent asphalt nozzles | |||||
| Heating mode | Heat conduction oil heating automatically,burner G20 (imported from Belgium) radiator (risheng brand) ,Heat-transfer oil pump 40-25-16( made in china) | |||||
| Generator | 5.5 KW gasoline engine | |||||
| Working | spreader width 4m, spreader capacity 0.2-4.0 kg/m2 | |||||
