| Item | Unit | Description |

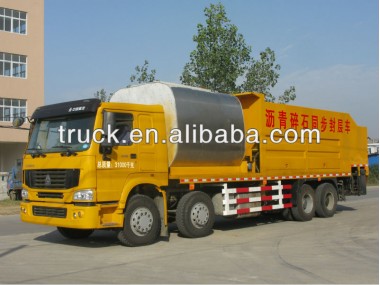

| Model | | Sino Brand Bitumen Spraying Truck |
| Dimension | mm | 12000*2500*3460 |
| Tank Dimension | m3 | Bitumen | 2500*2350*2100 / 8 cbm |
| Crush stone | 4500*2480*1400 / 12 cbm |
| Curb Weight | kg | 10370 |
| Wheel base | mm | 1800+4600+1350 |
| F/R track base | mm | 2022 / 2022 / 1830 |
| F/R Axle-load | Kg | 6500 / 7000 / 16000 ( Two 16 tons axles concatenation) |
| Approach/Departure angle | . | 16 / 11 |
| Traction system | 8*4 | Tire Specification/Number | 12.00-20 / 13 Units |
| Max speed | 90 km/h | Number of axles | 4 |
| Engine model | WD615.96E | Emission/kw | 9726ml/276Kw, 370HP |
| Diesel, 6 cylinder, Tubocharged and Watercooling. |
| Engine Manufacturer | Wei Chai Engine Power Co.,Ltd |
| Steering | Powering | Transmission | 10F&2R, HW13710C |
| ZF | Sino brand |
| Cab passenger | 3 | Electric System | 24V |
| Driven System | Left hand or Right hand |
| Air Condition | YES | CD player, Radio, |
| Spraying Specification |
| Asphalt Pump | QGB950/0.8 |
| Fire Manner | Auto |
| Heating Manner | Thermal Oil heated by fuel |
| Speed Measuring | Speed Sensor |
| Nozzle Quantity | 32 | Spraying Rate | 950L / min |
| Spraying width | 4000mm |
| Operation | Computer intelligent control, German SIEMENS brand. |
...
