Product Description
CLW5160GLQD4 Asphalt distributor main datesheet | |||
Truck name: | Intelligent asphalt distribution truck | Overall dimension: | 8650×2480×3070(mm) |
Chassis model: | DFL1160BX5 | ||
GVW: | 16000(Kg) | Approach/Departure angle: | 24.5/9(°) |
Related payload: | 5565,5500(Kg) | Overhang Front/Rear: | 1250/2700(mm) |
Curb weight: | 10305(Kg) | Max. Speed: | 90(km/h) |
Engine | Engine manufacturer | outpurt volume(ml) | Power kw) |
ISDe210 40 | Dongfeng Commins | 6700 | 155 |
ISB180 40 | Dongfeng Commins | 5900 | 132 |
Emission standard: | GB3847-2005,GB17691-2005 ( Euro 4 ) | ||
Axle qty: | 2 | Front track base: | 2020,2020,1986/1860,1830,1830(mm) |
Wheelbase: | 47,005,000 | Rear track base: | 1860,1830,1830(mm) |
Tire qty: | 6 | Tire model: | 10.00-20,10.00R20,9.00-20,9.00R20 |
Fuel type: | Diesel | Spring qty: | 11/10+8,12/10+8 |
Axle payload: | 6000/10000 | Person in cab: | 2,3 |
Main parts list | |||
S.N. | Part name | Model | qty |
1 | engine | ISB180 40 | 1 |
2 | Mixer | Danfoss | 2 |
3 | Asphalt tank | 8000-10000L | 1 |
4 | hydraulic pump | REXROTH | 1 |
5 | proportional valve | EFBG-03-160-HF | 1 |
6 | relief valve,selector valve | made in sanxi china | 1 |
7 | asphalt pump | TGGP-125-185(Belgium) | 1 |
8 | Asphalt pump hydraulic motor | REXROTH | 1 |
9 | burner | Diesel burner import by Italy (200000 kcal/H) | 2 |
10 | Heat-transfer oil pump | 25-25-160(made in Hebei china) | 1 |
11 | Control system | CLW-48-01(Siemens) | 1 |
12 | electric generator | 5.5KW Honda gasoline generator | 1 |
Performance Parameters | |||
Truck model: CLW5160GLQD4 | |||
Chassis: Dongfeng DFL1160BX5 | |||
Spaying width: 4500-6000mm | |||
Spraying value:0.2~3L/m2 | |||
Working speed:1.5-7km/h | |||
Heating method:Diesel burner import by Italy (200000 kcal/H) | |||
Spraying medium:Asphalt, hot modified asphalt, diluted asphalt, emulsified asphalt, rubber asphalt | |||
Spray Deviation: ±1.5% | |||
Asphalt tank capacity: 8000-10000L | |||
Nozzle qty and control type:48(control one by one) | |||
Overall dimension: 8590×2480×2840 |
asphalt distributor is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt such as intelligent automation high-tech products.
Used in the construction of high-grade highway asphalt pavement at the bottom of the transparent layer of oil spill cloth, waterproof layer, bonding layer.
The asphalt made of the automobile chassis, asphalt tank, asphalt pump and spraying system, heat conduction oil heating system, hydraulic system, combustion system and control system, pneumatic system, operating platform.
It is easy to operate, in the absorption of similar products at home and abroad on the basis of the technology, increased to ensure the construction quality and technical content and highlight the construction condition, construction environment improvement of humanized design.
Its design is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical performance has reached the world advanced level.The vehicle can improve through my company all aspects of the work in worse conditions

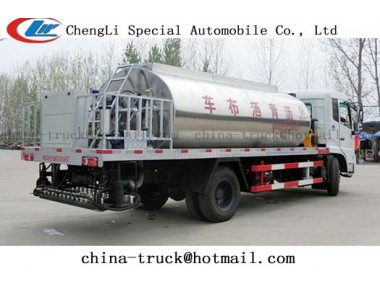

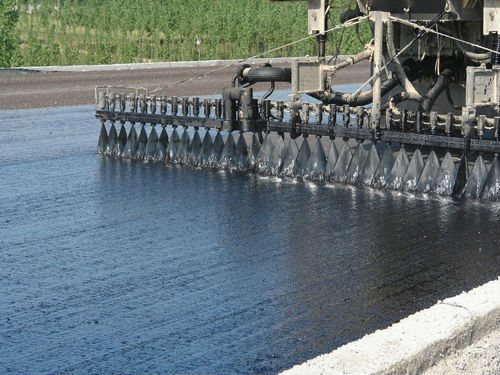

Multifunction Asphalt Distributor truck photos:
