原産地: | 中国(本土) | 銘柄: | frt | モデル番号: | FRT-C001 | 仕上げ: | 光沢 | 適用: | rcモデル | 製品タイプ: | カーボンファイバー・ボードのパネル | 形: | 炭素プレート | C成分 (%): | 100% | 作動温度: | 300 | 次元: | 400*500 |
包装
包装: | カートン、 プチプチ |

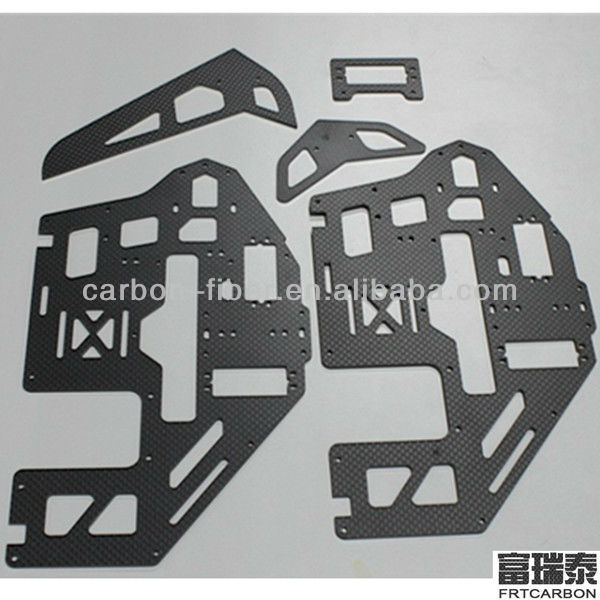

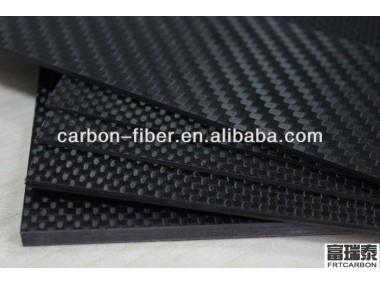

Item Name | carbon fiber plate, sheet, panel, board, veneer,laminate |
Material | high quality 1k- 3k plain/twill carbon fiber fabric |
Size | 500mmx400mm,500mm*600mm (other size ) |
Thickness | 0.2mm-20mm |
Day Output | 200pcs |
Color | black, silver, red, blue, gold, black mix blue, black mix red etc. |
Process | vacuum bagging/heat press |
Finish | high glossy/matt, UV protect |
Fitment | 100% good fitting |
Packing | just as customer need |
MOQ | Negotiation |
Features:
about carbon fiber:
Carbon fiber, alternatively graphite fiber, carbon graphite or CF, is a material consisting of fibers about 5–10 μm in diameter and composed mostly of carbon atoms. The carbon atoms are bonded together in crystals that are more or less aligned parallel to the long axis of the fiber. The crystal alignment gives the fiber high strength-to-volume ratio (making it strong for its size). Several thousand carbon fibers are bundled together to form a tow, which may be used by itself or woven into a fabric.
The properties of carbon fibers, such as high stiffness, high tensile strength, low weight, high chemical resistance, high temperature tolerance and low thermal expansion, make them very popular in aerospace, civil engineering, military, and motorsports, along with other competition sports. However, they are relatively expensive when compared to similar fibers, such as glass fibers or plastic fibers.
Carbon fibers are usually combined with other materials to form a composite. When combined with a plastic resin and wound or molded it forms carbon fiber reinforced plastic (often referred to as carbon fiber) which has a very high strength-to-weight ratio, and is extremely rigid although somewhat brittle. However, carbon fibers are also composed with other materials, such as with graphite to form carbon-carbon composites, which have a very high heat tolerance.
