    フィルム柔らかいホログラムエンボス加工機-熱出版物機械
    商品番号: 10838015
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380ボルト 原産地: 中国(本土) 寸法 (L*W*H): 2.2 × 2.6 × 1.17メートル/ 2.2 × 2.6 × 1.17メートル
    銘柄: kingsun 重量: 1500キログラム/ 3500キログラム 自動等級: 自動
    タイプ: 熱出版物機械 全体のパワー: 15kw/18kw 色及びページ: 多色刷り
    条件: 新しい 認証: ce iso9001 使用法: bopp、 ペット(コーティングされた)、cppとpvc
    提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 色: カスタマイズされた

    包装

    包装: 木製ケース

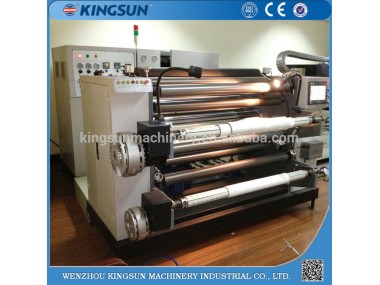

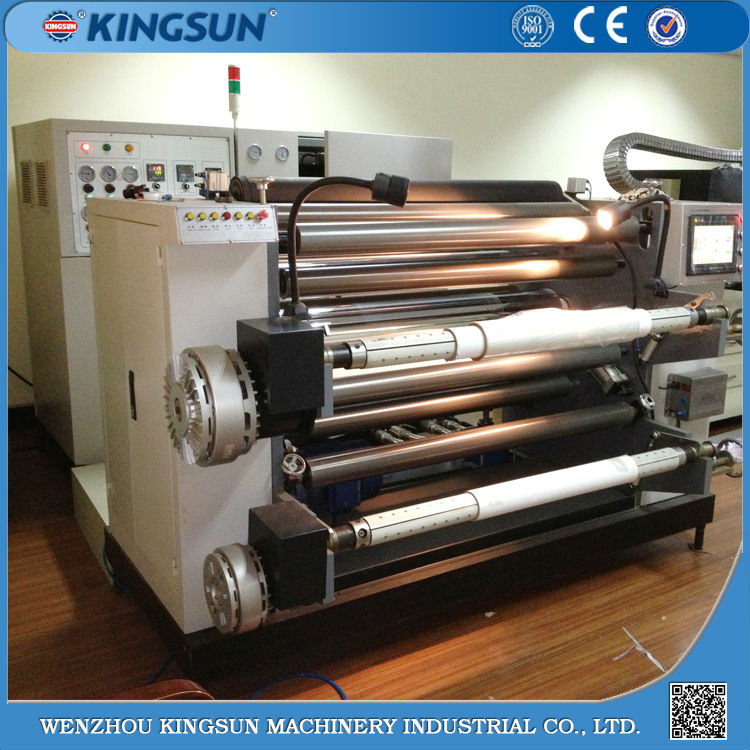

    Film Soft Hologram Embossing Machine



    Features:

    This machine aimed to transfer the master pattern which from the nickel metal onto the film such as BOPP, PET (coated), CPP and PVC, film thickness ranges from 12 to 200um; this machine and the electroforming machine able to make different kinds of patterns (artwork).

    This machine is PLC controlled, quick to change different plate roller without oil leakage, no affecting on master plate seam during heating and embossing, no wrinkling and shrinking in the process of embossing.



    Main specifications

    Model

    800

    1200

    Embossing width

    880mm

    1200mm

    Roller circumference

    330mm

    520mm

    Working speed

    60m/min

    60m/min

    Diameter

    500mm

    500mm

    Total power

    15kw

    18kw

    Voltage

    380V

    380V

    Air pressure

    4.5kg

    4.5kg

    Machine dimension

    2.2 x 2.6 x 1.17M

    2.2 x 2.6 x 1.17M

    Machine weight

    1500kg

    3500kg
