| 電圧: | 400 | 原産地: | 中国(本土) | 銘柄: | ダヤン | 土台: | 壁ファン | モデル番号: | Ywf-800g | 速度: | 530-930 | 刃材料: | ステンレス | タイプ: | 軸流れファン | 認証: | ROHS, CCC, CE | 力: | 320-925 | 電流のタイプ: | AC | 空気容積: | 9200-14800 | サイズ: | 800ミリメートル | 周波数: | 50/60 | ベアリング: | メンテナンス- フリー軸受、 l10 |
Product Description
G Series High Air Volume
- The fan rotor is directly welded by rotor and blade, it adopts double-sided dynamic balance, and the dynamic balance achieved G6.3.
- The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant. The motor cover is also special handled, which helps the cover free from oxidized.
- Fan normal ambient temperature:-25°C~+60°C, if the temperature range exceed the above, our factory can customize according to your requirements.
- The current insulation grades supplied are B-class, F-class and H-class, and protection class is IP54. At present, we can also supply the fan of working environment temperature:-40°C~+60°C and -25°C~+80°C. All fans can install thermal protection.
- We can provide you with motors of special requirements: special voltage, double speed etc.
- The cable can be directly leaded out, and we can provide water-proof junction box for your selection.

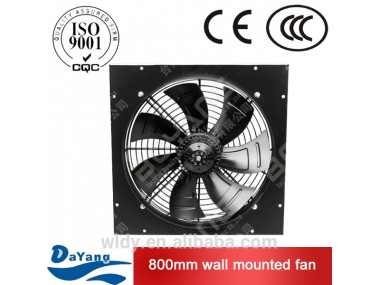

Technical Data about 800G Series wall mounted exhaust fan
| Model | Voltage | Frequency | Current | Input power | Speed | Noise | Capacitor | Air volume | Mass |
| V | Hz | A | W | r/min | dB | μF | m³/h | Kg | |
| YWF6D-800G | 400 | 50 | 4.1 | 2120 | 900 | 85 | - | 25800 | 55 |
| YWF6D-800G | 400 | 50 | 2.51 | 1320 | 680 | 80 | - | 20800 | 55 |
| YWF8D-800G | 400 | 50 | 2.4 | 1110 | 700 | 76 | - | 19500 | 59 |
| YWF8D-800G | 400 | 50 | 1.78 | 810 | 550 | 67 | - | 16800 | 59 |
Company Information

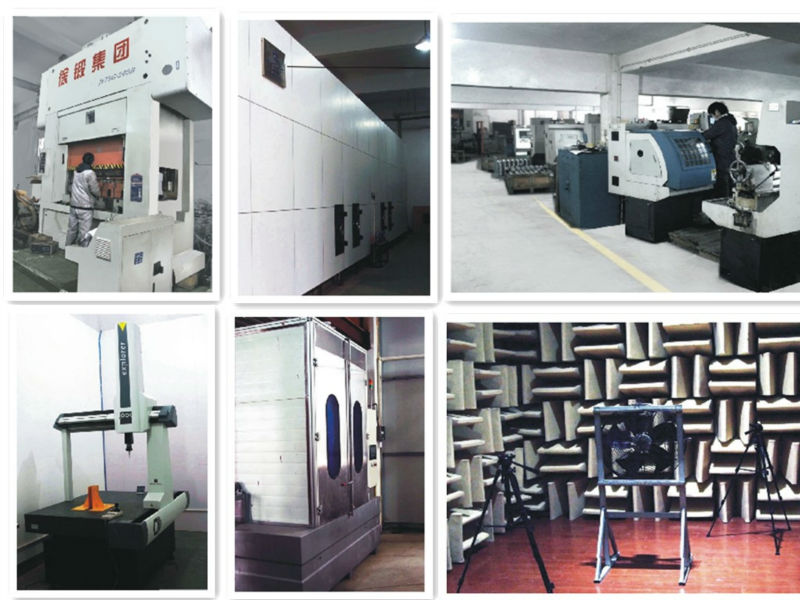

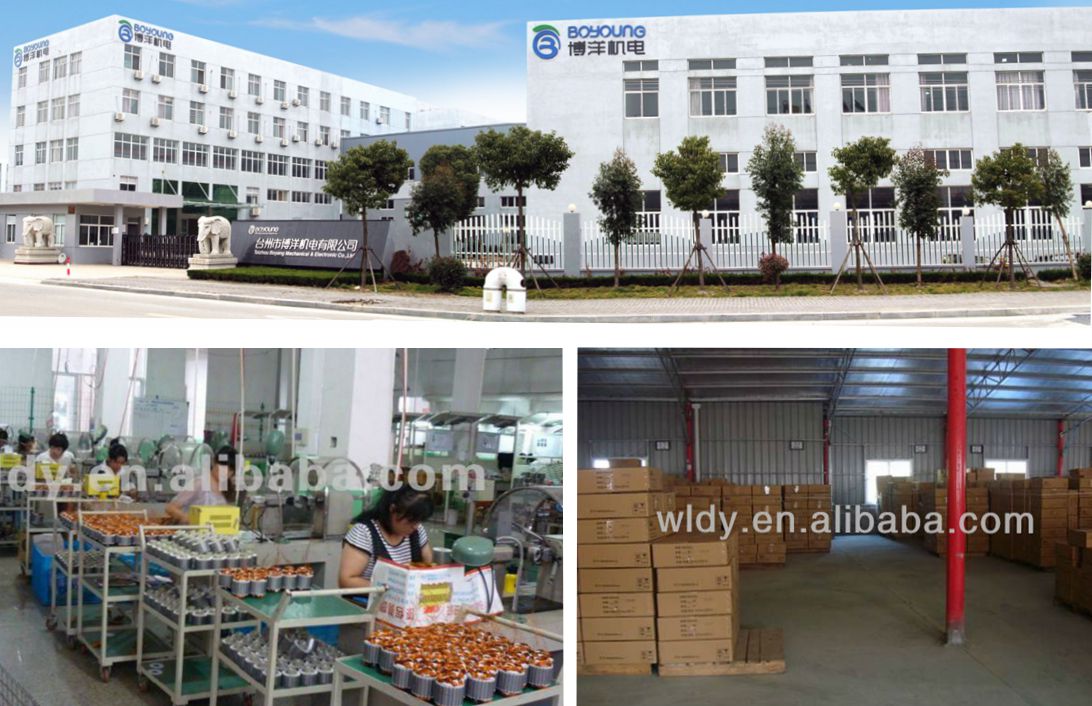

1.Our Factory
