原産地: | 中国(本土) | 銘柄: | 世紀織 | 適用: | オイルフィルター | モデル番号: | CWOS-41692 | 重量: | 12.5キログラム | タイプ: | 線形 | 保証: | 360時間 | 条件: | 新しい | 認証: | iso | 次元(L*W*H): | 585 × 1165 × 40ミリメートル | をキーワード: | 頁岩シェーカー画面 | 外形寸法( l *ワット* h): | 585 × 1165 × 40ミリメートル | 重量: | 12.5kgs | 認証: | iso | フィルター評価: | 99.5% | 材質: | 304 316 | 範囲のメッシュ: | 20-325 | ブランド名: | 世紀織 | 他の名前: | デリック·頁岩シェーカー画面 | 他のキーワード: | 振動ふるいメッシュ |
包装
包装: | 画面は、 一般的に木造に置くとダンボール箱、 ことも出来るが、 顧客の要件として |

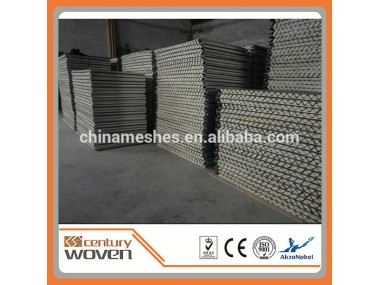

shale shaker screen
mine sieving mesh is a kind of metal mesh -structure equipment
material: stainless steel wire mesh,plastic plain wire mesh,galvanized plate( 1Gr18Ni9Ti or 0Gr18Ni9Ti)
characteristics: alkale-resisting,heat-resisting,wear-resisting,etc
uses: used in oil vibrating sieving mesh.
outside:1050*695mm
mesh:12-300mesh
wire dia:1.5-6mm
Tensile Strength: 1200Mpa
Sheet size: 1x2m, 1.2x2.4m 1.5mx2.5m and so on.
Type: plane screen me
plane screen mesh | PWP | 40mesh/20meshx7001050 |
48-30D | 80mesh/20meshx7001050 | |
120mesh/30meshx7001050 | ||
160mesh/40meshx7001050 | ||
40mesh-200mesh for this type as above | ||
wave type screen mesh | PMD | 20mesh/12meshx7001050 |
48-30D | 40mesh/18mesh/12meshx7001050 | |
100mesh/40mesh/20meshx7001050 | ||
160mesh/60mesh/20meshx7001050 | ||
200mesh/60mesh/20meshx7001050 | ||
20mesh-200mesh for this type as above | ||
three tier conglutination screen mesh | 40mesh/20mesh/12meshx715x1215 | |
80mesh/40mesh/12meshx715x1215 | ||
120mesh/40mesh/20meshx715x1215 | ||
180mesh/60mesh/20meshx715x1215 | ||
20mesh-200mesh for this type as above | ||
plate conglutination screen mesh | 40mesh/12meshx9001146 | |
80mesh/20meshx9001146 | ||
140mesh/20meshx9001146 | ||
20mesh-160mesh for this type as above | ||
vibrating sieving mesh | 60mesh/20meshx11501000 | |
100mesh/20meshx11501000 |
FLC500 Series Screen | |
Mesh | API20---API450 |
Dimension | Length:1050mm (41 3/10”) |
Width: 697mm (27 2/5”) | |
Weight | PWP: 6.0kg (13.2lb) |
PMD: 7.5kg (16.5lb) | |
Screen layer | 2 or 3 Layers |
Wire mesh material | S.S304 ,S.S316 (Customizable) |
frame material | Carbon steel |
FLC2000 Series Screen | |
Mesh | API20---API450 |
Dimension | Length:1053mm (41 1/2”) |
Width: 697mm (27 2/5”) | |
Weight | PWP: 4.2kg (9.24lb) |
PMD: 5.8kg (12.76lb) | |
Screen layer | 2 or 3 Layers |
Wire mesh material | S.S304 ,S.S316 (Customizable) |
frame material | Carbon steel |
