| 原産地: | 中国(本土) | 銘柄: | naipu | 力のタイプ: | ディーゼル | モデル番号: | ws1000 | 浚渫の深さ: | 76メートル | 重量: | 126 t | タイプ: | カッターの吸引の浚渫船 | 条件: | 新しい | 認証: | ce iso | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | 木製ケースまたは顧客の要求として |

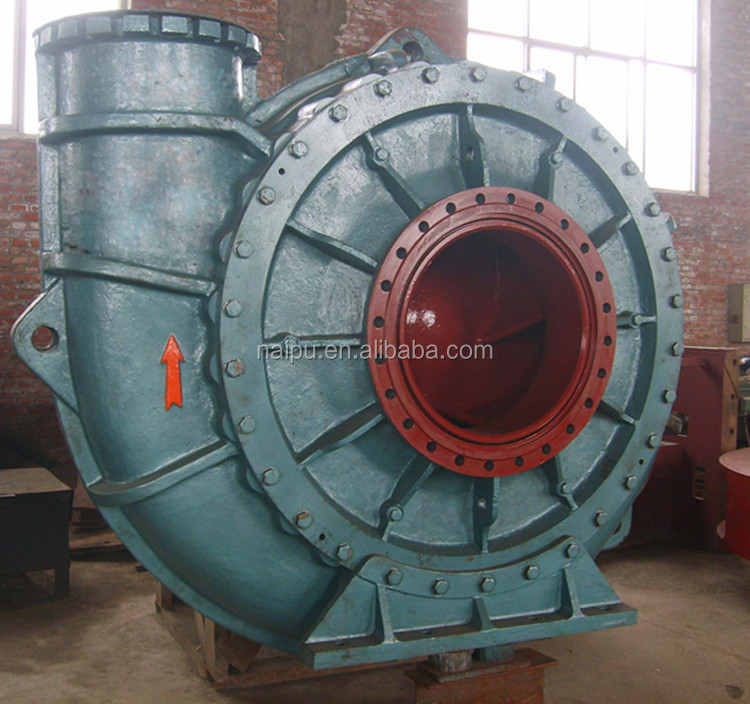

WSG Large Duty High Flow Sand Suction Pump
| Item | sand suction pump |
| Model | 100 WS-1000 WSG |
| operating principle | Centrifugal |
| Pump shaft position | Horizontal |
| suction type | single stage single suction |
| Capacity | 180-25000m3/h |
| Head | 25-85m |
| Speed | 180-1400 rpm |
| Outlet dia | 100-1000mm |
| NPSHR | <6 m |
| Material | High Chrome Alloy |
| properties | High wear resistance,long life time |
| Application | transport clay, sand , graval,sludge and so on |
Application and Features
WS dredging pump is a new type of sludge pump researched & manufactured by our company,aiming at rivers and seas out of repair.WS pump is a single-stage single suction cantilever horizontal centrifugal pump with advantages of light weight, good wear-resistan, super dredging performance, perfectly suited for the dredge on the whole construction, high multiple economy benefits, etc.. It throughout meets requirements of the dredge to dredging pumps.
Strongly wear-resistant casing alloy iron, whose harness is not less than 58 HRC adopted for the casing , impeller, front liner , and rear liner of wet parts.
Obvious Economic efficiency
The Pump is suited for wide range of application with strong though -put , it can transport clay, sand, and gravel of various quality& sludge by matching different digging equipment(cutter or bucket wheel) andthe relevent pump impeller. it easily meets requirements of different transport distance by matching gearboxes with various driving ratios. The good ability of through-put of the pump itself ensures the performances range of the dredge. it can persistently suck &discharge gravel , high plastic clay without clogging.
High hydraulic efficiency, little oil consumption.
Good NPSH performance , strong suction lift, large dredging depth, hgh density of dredged mud . It can increase total output of the sand &mud and out put in per positioning and decrease consumption of time and energy of removing the dredge.
The pump parts have long operation life so as t greatly reduce maintenance, prolong continuous operating time, raise utput in per unit time , and reduce cost . Reason matching f the working life among the parts makes the pump always operate at high efficiency to gain best ratio of investing to output.
The dredging pump with simple construction, easily disassembly & assembly, convenient maintenance can loer labor intensity, decrease working quantity &employee , increase economic efficiency.
