| 原産地: | 中国(本土) | 銘柄: | daiカーウァイ | 適用: | フィルム | モデル番号: | Dw- bfm- a+b+a | 保証: | 1年間 | 条件: | 新しい | 認証: | ce | 処理されるプラスチック: | PE | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 自動: | はい | 打撃の形成のタイプ: | 放出の打撃の鋳造物 | 押出機: | 2セット | フィルム層: | 2層 | ネジ径: | 45ミリメートル | ネジの材料: | Bi- メタリック | ダイヘッド径: | 100/150/180mm | ダイヘッド材料: | 40cr | モーター: | シーメンス | インバータ: | 安川電機 | 膜厚: | 0.015-0.06mm | 全体の高さ: | 6000ミリメートル |
包装
| 包装: | クライアント要求によって |

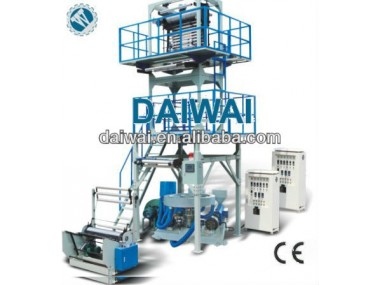

Three layer blown film machines for hdpe,ldpe,Plastic Blown film extruder machines
The three-layer co-extrusion film blowing machine are all taken of the most advanced technology from Taiwan and all make of high-grade raw materials, all of which lead to our blowing film machines well known in China and abroad.
Fundamental of our machine.
1. Stably high speed; consistency; reliable.
2. High-efficient energy saving and ultra low noise, vibration.
3. Automatic control , continue operation.
4. User friendly design and unique style; easy maintenance.
Optional Equipment
1.Auto loader
2.Corona treater
3.Full auto winding
4.Air compressor
5.Quickly manual Net-Changing device
6.IBC inner cooling system
7.Upper rotary
8.Auto deviation correcting device
Parameters
| MODEL | DW-BFM-A+B+A |
| SUITABLE MATERIAL | HDPE+LDPE/LDPE+HDPE |
| FILM WIDTH RANGE | 500-1000 |
| FILM THICKNESS | 0.015-0.08mm |
| MAX OUTPUT | 100kg/hr |

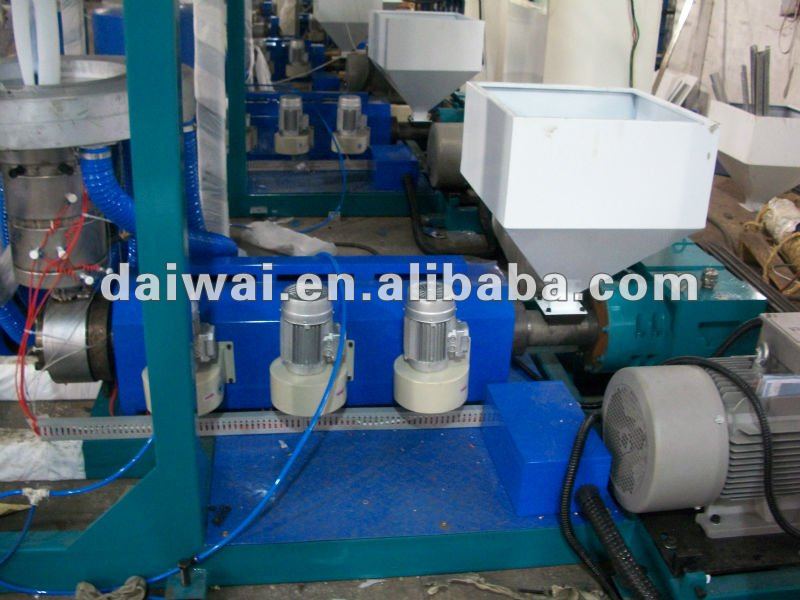

| EXTRUDER UNIT | |
| SCREW DIAMETER | A45B55 |
| SCREWL/D RATIO | L/D 28/1 |
| SCREWMATERIAL | 38CrMoALA |
| SCREWROTATION SPEED | 25-150r/min |
| DRIVING MOTOR | 50P(A15KW+B22KW) |
| HEATING CAPACITY | 23KW |
| TEMPERATURE CONTROL | 2×6ZONE |
| BARREL COOLING FAN | 1/7HP(180W)×6 |
| DIE HEAD UNIT | |

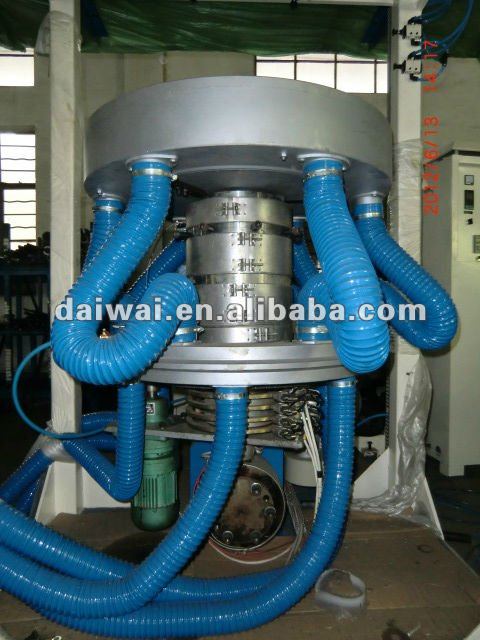

| DIE HEDA DIAMETER | 100/150 /180mm |
| BLOWER | 7.5HP(5.5KW) |
| HEATING CAPACITY | 13KW |
| TEMPERATURE CONTROL | 3ZONE |
| DIE HEDA MATERIAL | 40Cr |

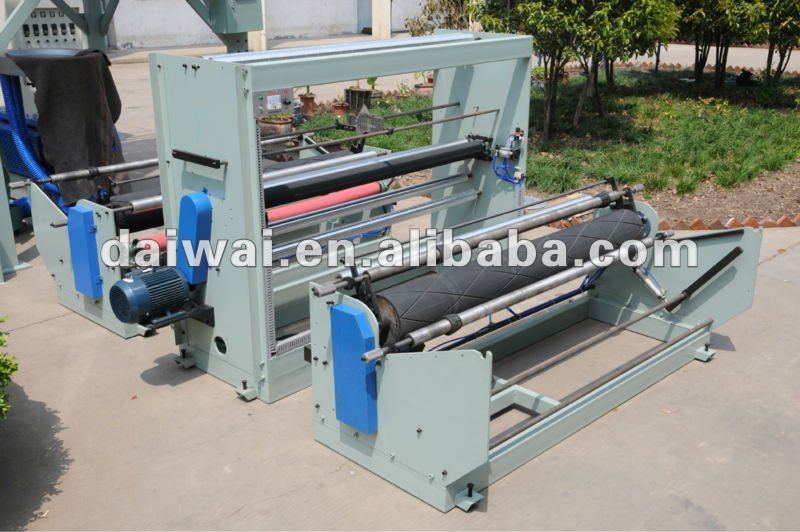

| TAKE-UP UNIT | |
| TAKE-UP ROLLER WIDTH | 1100mm |
| EFFECTUAL TAKE-UP | 1000mm |
| TAKE-UP MOTOR | 2HP(1.5kw) |
| TAKE-UP LINE SPEED | 60m/min |
| WINDING UNIT | |
| WINDING ROLLER WIDTH | 1100mm |
| EFFECTUAL WINDING | 1000mm |
| WINDING MOTOR | 2HP(1.5kw) |
| TOTAL HEIGHT | 6000mm |
We have been in this field of manufacturing plastic film moulding machine for almost 20 years, if you are interested, please feel free to contact me at any time.
Professional manufacturer of plastic packing machine: film blowing machine, blown film printing machine, T-shirt bag making machine, Garbage bag making machine, Side-sealing machine, Heat-sealing & cutting machine.....
