Elastomer Cast Machine

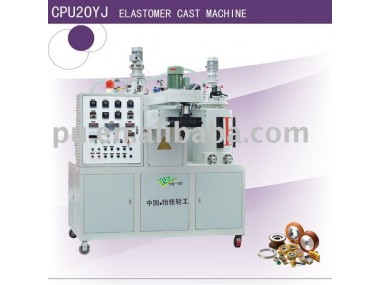

CPU20YJ Elastomer Cast Machine
Product Application
This machine is used for producing casting polyurethane elastomer product which use MOCA and other material as chain extender, and can compose pre-polymer and vacuum to do foaming in this machine
Features
1.;Right measurement;error<±0.5%;
2.Equally mix;Structure of pour point is advanced,performance reliable;
3.;Stable temperature.;error<±2oC.;
4.;Macrography of goods has no air bubble;
Working condition
| Component name | Mixture Ratio | Temperature | Viscosity(cps) |
| A:Propolymerization | 100 | 60-100 | 500-1000 |
| B(MOCA)etc | 8-16 | 105-125 | 50MAX |
| NO | Item(Type) | CPU20YJ-1 | CPU20YJ-2 | CPU20YJ-3 | CPU20YJ-4 | CPU20YJ-5 |
| 1 | Total handling capacity(g/min) | 200-800 | 1000-3000 | 2000-5000 | 3000-8000 | 5000-15000 |
| 2 | Volume of tank? A(L) | 120 | 160 | 220 | 220 | 360 |
| 3 | Volume of tank? B(L) | 30 | 30 | 30 | 32 | 46 |
| 4 | Mixing tuming speed of pouring mouth(r/min) | 4000-5000 | 4000-5000 | 4000-5000 | 4000-5000 | 4000-5000 |
| 5? | Total power (kw) | 26 | 30 | 30 | 32 | 46 |
| 6 | Pouring mouth attracting length (mm) | 600 | 800 | 800 | 800 | 1000 |
| 7 | The height from the groud mm | 1200 | 1300 | 1300 | 1300 | 1300 |
| 8? | The out-sgaoe size? (mm) | 1650x(1050+600)x2400 | 30801450x2586 | 1750x(1250+800)x2550 | 1750x(1250+800)x2850 | 1900x(1350+1000)x3050 |
| 9 | Weight? (kg) | 1200 | 1500 | 1600 | 1700 | 2000 |
