    商品の詳細

    原産地: トルコ 銘柄: inotek



    SILO TOP FILTER

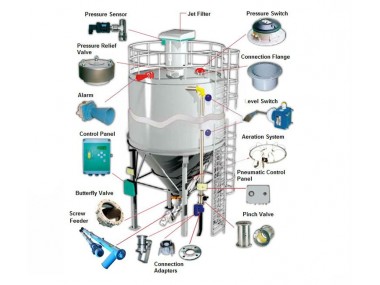

    Silo top filter is designed for dedusting of silos and bunkers which are used for storage of bulk solids as cement, grain, ash, lime, clinker etc.
    Flow rate (m3/h) 900
    Filter surface (m2)15
    Diameter (mm) 600
    Filter element cartridge
    Temperature (°C) -40/+90





    LEVEL INDICATOR   is used to determine the maximum and minumum level of the cement in the cement silo by using of rotary motion.



    PRESSURE RELIEF VALVE is designed to protect silos from damaging over and under pressures encountered during filling and emptying. THE BUTTERFLY VALVES are specially for use under containers or silos, can be used for temperatures between -40 °C and +200 °C
    Features of Valve

    Maintennace free design
    Centrally positioned valve disc designed to promote a good flow, with special shaft connection, giving an absolute seal in both directions of flow.
    B Seals are detachable

    The main function of a ROTARY VALVE is to regulate the flow from  one chamber to another while maintaining a good airlock condition.
