| 原産地: | 中国(本土) | 銘柄: | 嘉里 | モデル番号: | ydk | タイプ: | ファンモーター | タイプ: | エアコンは分ける | 認証: | RoHS | 適用: | 家 | タイプ: | アプライアンス | 証明書: | ccc、 | 絶縁クラス: | b、 f | 回転: | ccw |
包装
| 包装: | carotnsまたはパレット |
The motors can be customized according to the different voltages , freqencies and rotation speed .
| Air condictioner Motor | |||||||
| Performance : High efficiency , High reliability , Less vibration , Low noise | |||||||
| SUIT FOR : 1P, 1.5P,2P Outdoor air condictioner | |||||||
| Technical Parameters | |||||||
| Model | Rated of | Raded of | Output | RPM | Capacity | Noise | Electrode |
| voltage(V) | frequecy(Hz) | Power (W) | (r/min) | µF/450V | dB(A) | ||
| YDK15-4/6 | 220 | 50/60 | 15 | 1350/60-800 | 2.0/1.5 | < 42 | 4 or 6 |
| YDK20-4/6 | 220 | 50/60 | 20 | 1350/60-800 | 2.0/1.5 | < 42 | 4 or 6 |
| YDK25-4/6 | 220 | 50/60 | 25 | 1350/60-800 | 2.5/2.0 | < 42 | 4 or 6 |
| YDK30-4/6 | 220 | 50/60 | 30 | 1350/60-800 | 2.5/2.0 | < 42 | 4 or 6 |
| YDK35-4/6 | 220 | 50/60 | 35 | 1350/60-800 | 2.5/2.0 | < 42 | 4 or 6 |
| YDK45-4/6 | 220 | 50/60 | 45 | 1350/60-800 | 3.0/2.5 | < 42 | 4 or 6 |
| YDK50-4/6 | 220 | 50/60 | 50 | 1350/60-800 | 3.0/2.5 | < 42 | 4 or 6 |
| YDK60-4/6 | 220 | 50/60 | 60 | 1350/60-800 | 3.5/3.0 | < 42 | 4 or 6 |
| The motors can be customized according to the different voltages , freqencies and rotation speed . | |||||||

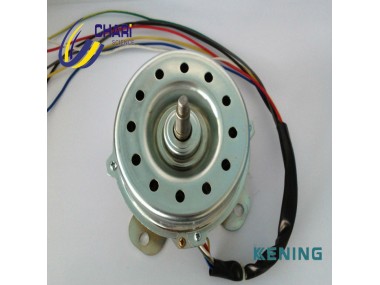

AC auto motor for air conditioner outdoor fan
1.MOQ:2000SETS
2.Price term: FOB or CIF
3.Payment term: T/T in advanced or L/C
4.Delivery time: about 20 days after receive the deposit or original L/C
5.Packing: in cartons(4pcs or 10pcs) or in pallets(180 or 216pcs)
6.Qty/20GP: 5000PCS(in cartons) or 3600PCS(in pallets)
7. Qty/40HQ: 8640PCS(in pallets)
