| 原産地: | 中国(本土) | 銘柄: | xinri | モデル番号: | mw5 | 保証: | 1年間 | 条件: | 新しい | 次元(L*W*H): | 1300ミリメートルx1300mmx550ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 原産地: | 江陰、 中国 | ブランド名: | xinri | アプリケーション: | リフティング鋼スクラップと鋼球 | 形状: | ラウンド | 電圧: | dc220v | デューティサイクル: | 60％ | インストールする: | ・クレーンショベル | 正味重量: | 2050kg | パワー: | 11.9kw | 寒流: | 54a |
包装
| 包装: | 標準的な輸出パッケージ |
Product Description

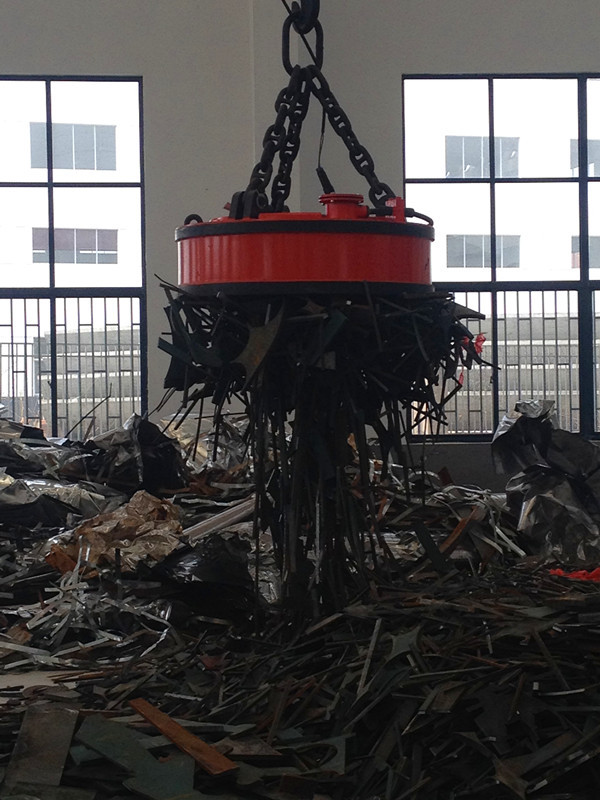

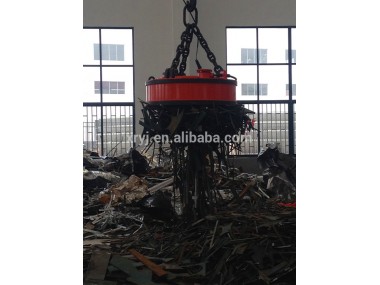

MW05 series electric lifting magnet is widely used on smelting,casting,and transportation to carry steel plate,steel casting,steel ingot,pig iron and steel scrap.
electric lifting magnet Mainly features are as following:
1.MW5 series electromagnet lifer use special magnetic path design,gap flux density is high.Non magnetic coil back plate is made of high manganese steel plate with good resistance and abrasive resistance,it is welded with the body case, it does not use bolts to connect ,so it is very firm and strong.
2.The coil use double glass silk to pack the aluminum wire, thermostability and good insulativity.
3.Insulation system is reasonable. Insulating treatments: vacuumize,Vacuum encapsulating compound.This kind of treatment can increase the electric property and mechanical properties.Insulating material resistance to heat class is up to C.
4.On-load factor is 50% usually.On-load factor 75% magnet is called high frequency
magnet,High frequency magnet operating frequency is very high,and work efficiency
is high.
5.MW5 series magent advantage are : light weight,high magnetic force,better moisture resistance,long working life,simple structure,and is very safe.

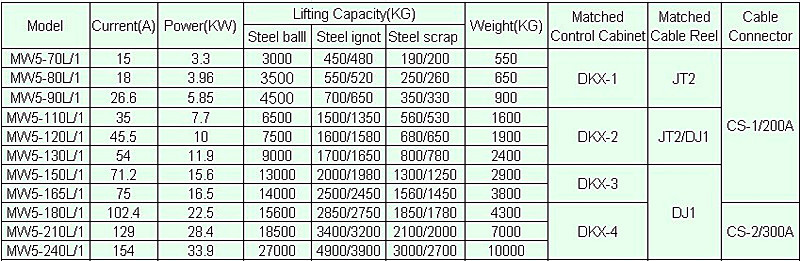

MW5 Series electric lifting magnet size:
